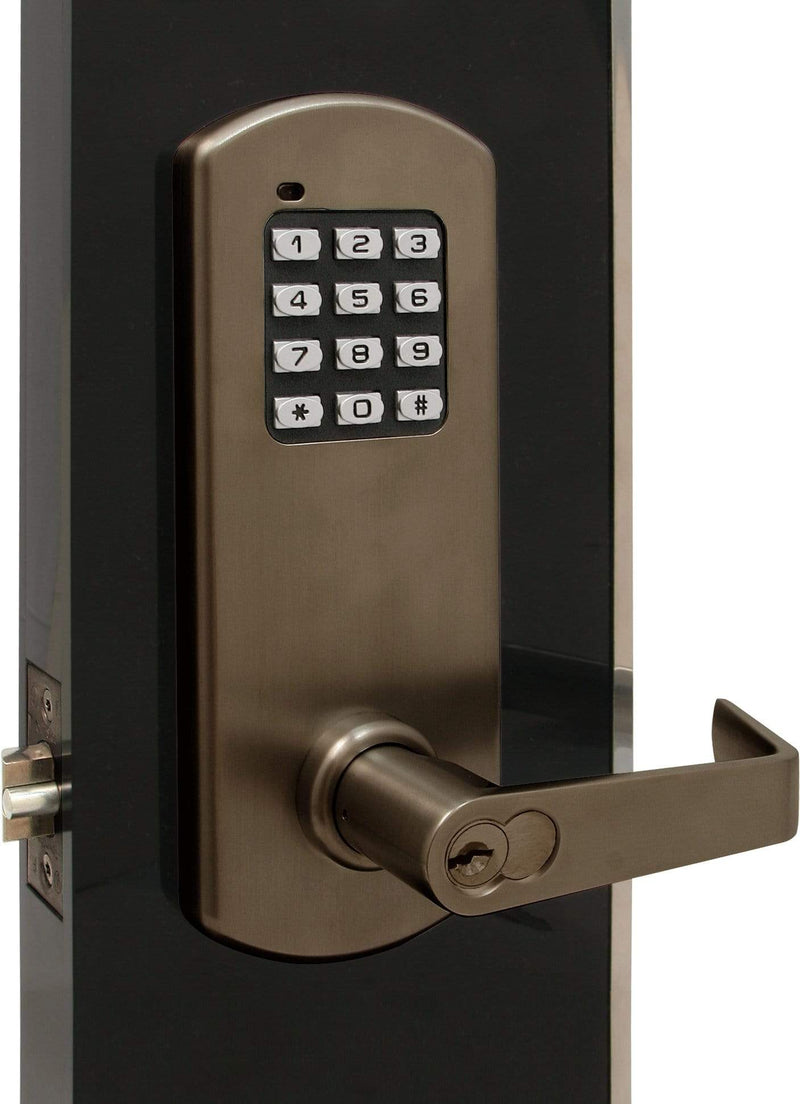

TownSteel XCE Series Grade 1 Push Button Electronic Lock SFIC -10B

Write A Reviews
  • Vendor : TownSteel
  • SKU : TSL-XCE-2020S-SFIC-10B
  • Weight : 1.0 lb
  • Finish : US10B
See full product details
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 15 business days.
Login For Price

Description

TownSteel XCE Series Grade 1 Push Button Electronic Lock -10B

Programming Features

  • 1 Master Code, 90 User Codes,10 Manager Codes, 5 Service Codes
  • Powered with 4 AA Alkaline batteries, up to 2 years battery life
  • -31° to 151° F (-35° to 66°C) Operating Temperature

Mechanical Specifications

  • Door Thickness: 1-3/4”
  • Backset: 2-3/4” standard
  • Clutched Trim
  • Latch bolt: stainless steel, deadlocking, ½”throw
  • Faceplate: 1-1/8“x 2-1/4”
  • Strike: ASA strike standard, 1-1/4” x 4-7/8”

Cylinder Specifications

  • Small format IC (SFIC) 6 or 7 pin - Core not included

    Certifications

    • ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
    • ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
    • UL/ULC -- UL 10C 3-hour rated
    • BAA - Meets guidelines of the Buy American Act
    • ADA - Meets requirements of the Americans with Disabilities Act
    • RoHS - Meets requirements of EU RoHS Directive 2002/95/EC

    Warranty

    • 2-year limited for electronic
    • 5-year limited for finish
    • 10-year limited for mechanical

    Downloads



    TownSteel XCE Series Grade 1 Push Button Electronic Lock SFIC -10B Specifications

    • Weight : 1.0 lb
    • Finish : US10B
