Description

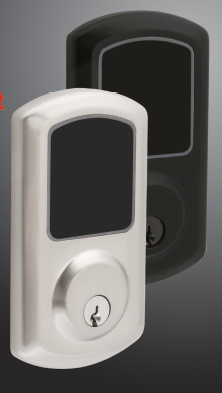

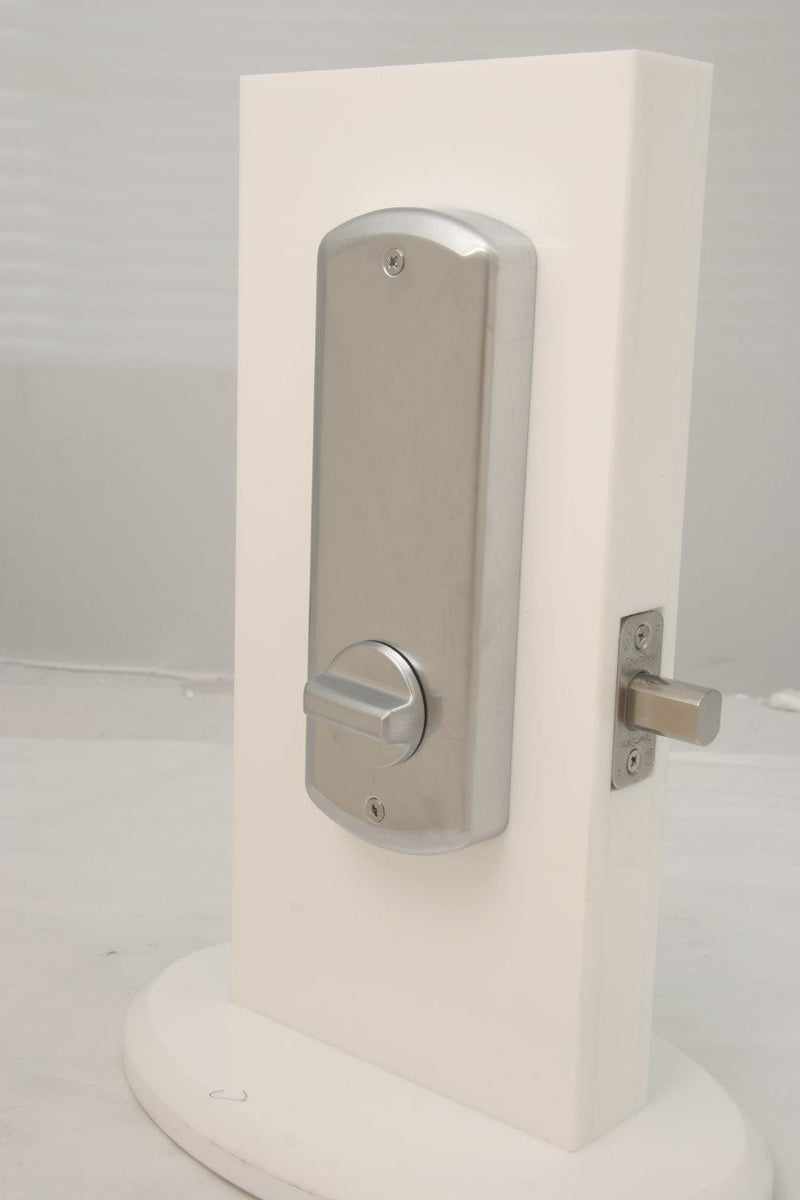

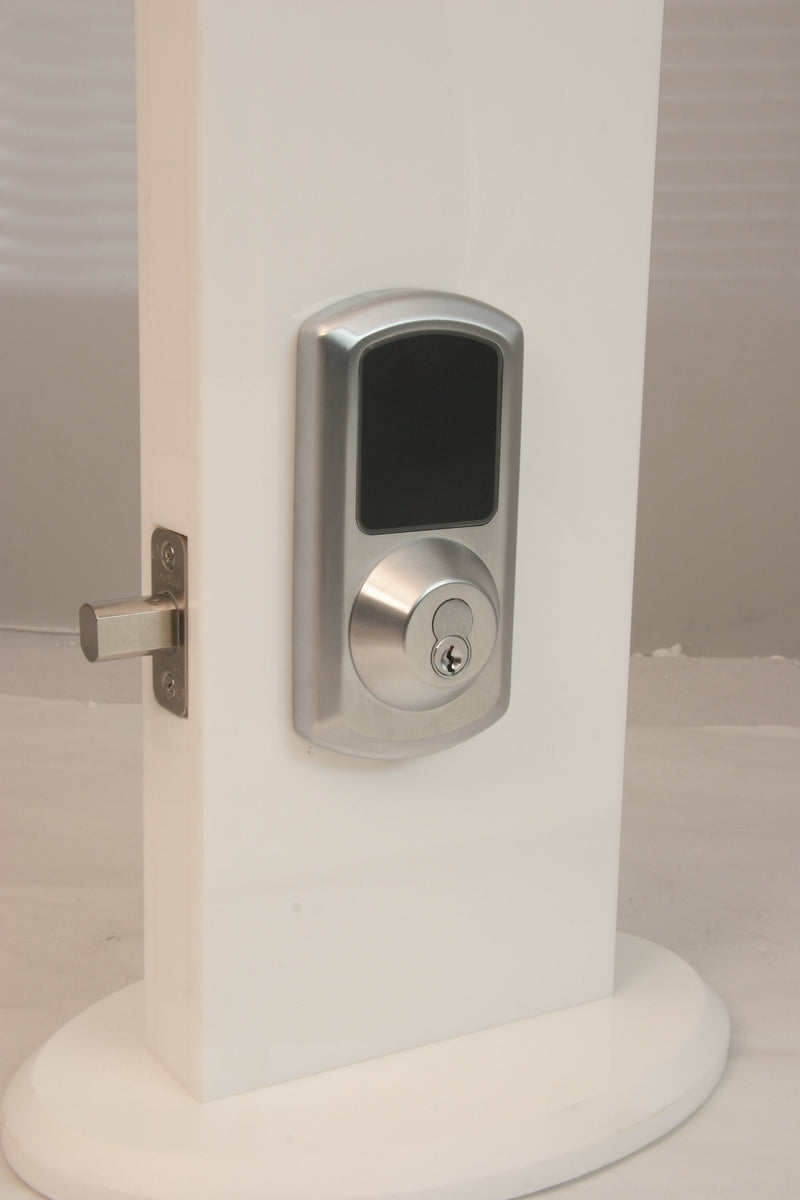

TownSteel E-Smart 5000 Series Grade 2 Deadbolt w/Bluetooth -Satin Chrome

Programming Features

• 400 user codes interchangeable with RFID keycards/ stickers
• Code Length: 6 to 10 digits, with anti-pry
• Powered with 4 AA Alkaline batteries, up to 1-year battery life
• System Settings: Passage Mode, Verification Mode, and Sound Adjustment
• BLE and RF technology through our mobile app

Mechanical Specifications

• Motorized deadbolt lock
• Standard 161 door prep
• For door thickness 1-3/4”
• 5 pin brass cylinder, optional high-security cylinder
• 2 nickel silver keys
• 1″ x 2-1/4″ faceplate plated finish
• 1-1/8” x 2-3/4″ strike
• 1” throw deadbolt with anti-saw pins, optional drive-in deadbolt
• 2-3/8” and 2-3/4” backset
• Optional dummy trim available

Warranty

• 1-year limited for electronic
• 4-year limited for the finish
• 9-year limited for mechanical


Downloads

• E-Smart Door Template
• E-Smart Lock Installation Guide
• E-Smart Programming Guide
