TownSteel E-Smart 5000 Series Grade 2 Deadbolt w/WiFi -Satin Chrome

$ 285.39
SKU TSL-E-SMART-5000-RF-626

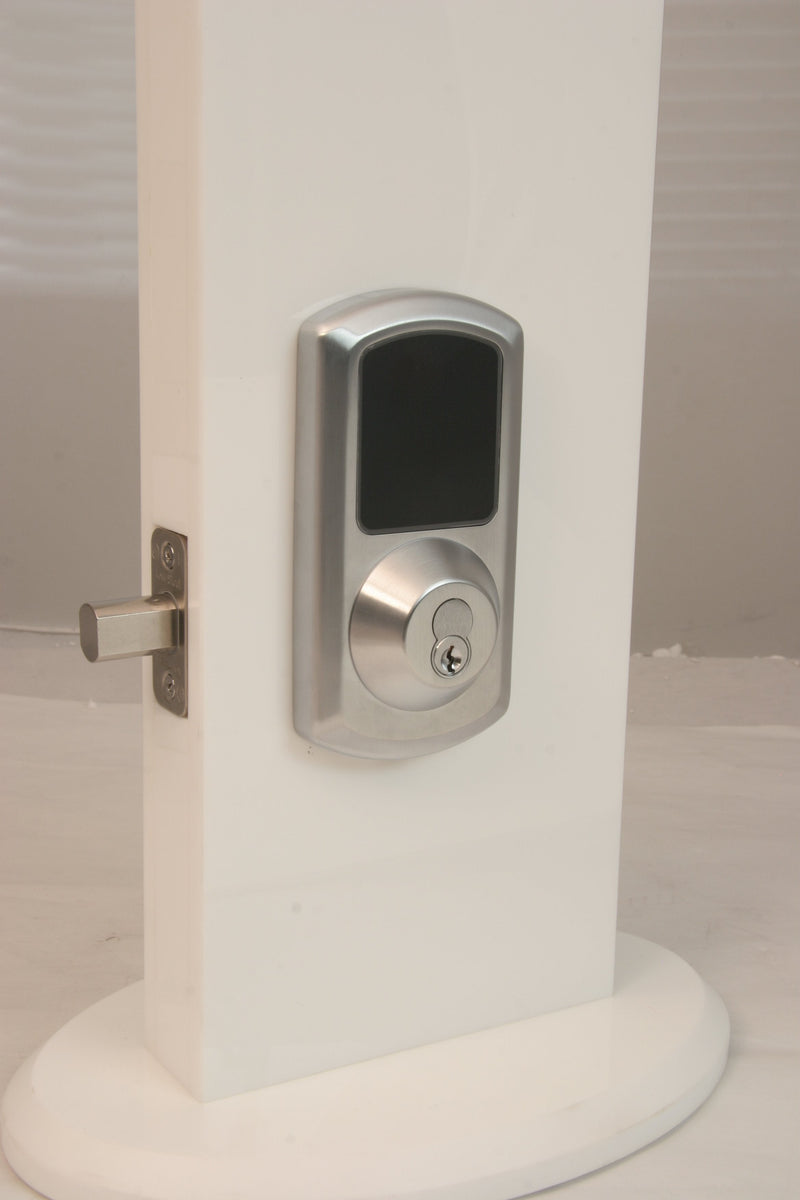

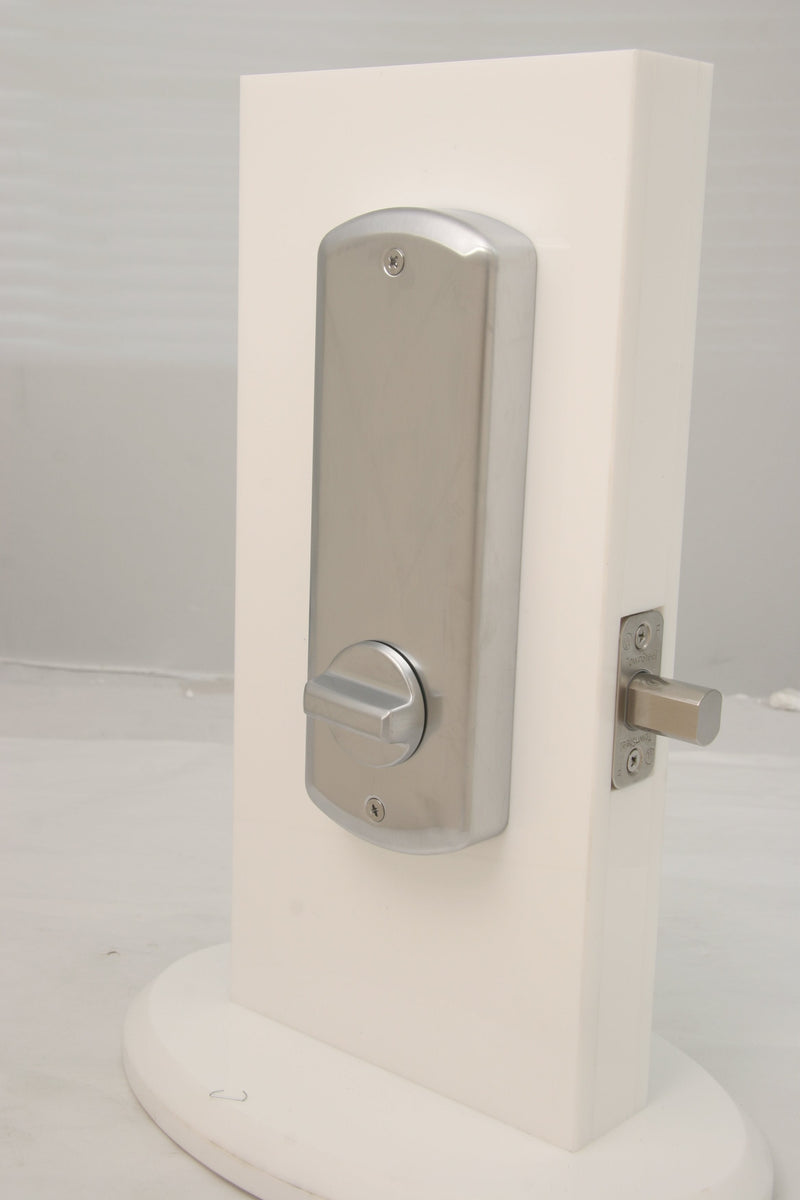

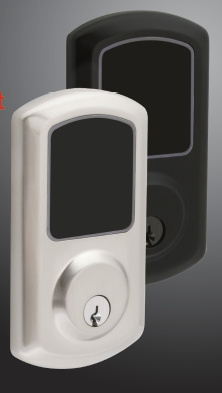

TownSteel E-Smart 5000 Series Grade 2 Deadbolt w/WiFi -Satin Chrome

Programming Features

  • 400 user codes interchangeable with RFID keycards/ stickers
  • Code Length: 6 to 10 digits, with anti-pry
  • Powered with 4 AA Alkaline batteries, up to 1-year battery life
  • System Settings: Passage Mode, Verification Mode, and Sound Adjustment
  • BLE and RF technology through our mobile app

Mechanical Specifications

  • Motorized deadbolt lock
  • Standard 161 door prep
  • For door thickness 1-3/4”
  • 5 pin brass cylinder, optional high-security cylinder
  • 2 nickel silver keys
  • 1″ x 2-1/4″ faceplate plated finish
  • 1-1/8” x 2-3/4″ strike
  • 1” throw deadbolt with anti-saw pins, optional drive-in deadbolt
  • 2-3/8” and 2-3/4” backset
  • Optional dummy trim available

Warranty

  • 2-year limited for electronic
  • 5-year limited for the finish
  • 10-year limited for mechanical
