Description

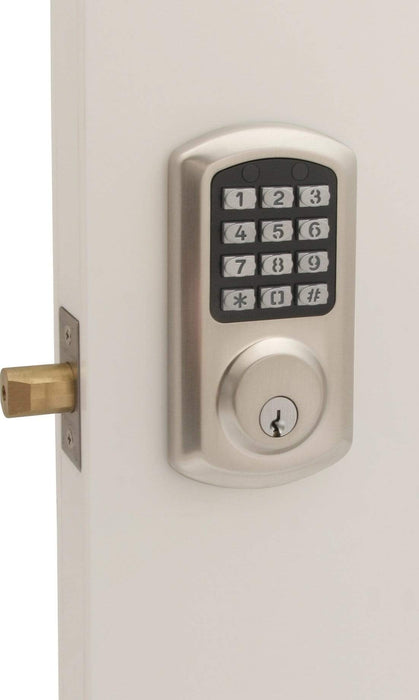

TownSteel E-Smart 2000 Series Grade 1 Deadbolt -Satin Chrome

Programming Features

• 100 user ID and user codes
• Code Length: 4 to 6 digits
• Powered with 4 AA Alkaline batteries, up to 1 year battery life
• System Settings: Enable/Disable, Lock Status Indicator, Penalty Time, and more

Mechanical Specifications

• Motorized deadbolt lock
• UL 3 hour listed
• Standard 161 door prep
• For door thickness 1-3/4”
• 2 nickel silver keys
• 1″ x 2-1/4″ faceplate, plated finish
• 1-1/8” x 2-3/4″ strike
• 1” throw deadbolt with anti-saw pins, optional drive-in deadbolt
• Adjustable 2-3/8”or 2-3/4” backset

Cylinder Specifications

• SC1 Key, 5 pin Schlage C keyway

Certifications

• ANSI/BHMA Grade 1 certified
• UL 10C Compliant
• FCC part 15 certified

Warranty

• 2-year limited for electronic
• 5-year limited for finish
• 10-year limited for mechanical

Downloads

• E-Smart Door Template
• E-Smart Lock Installation Guide
• E-Smart Programming Guide
