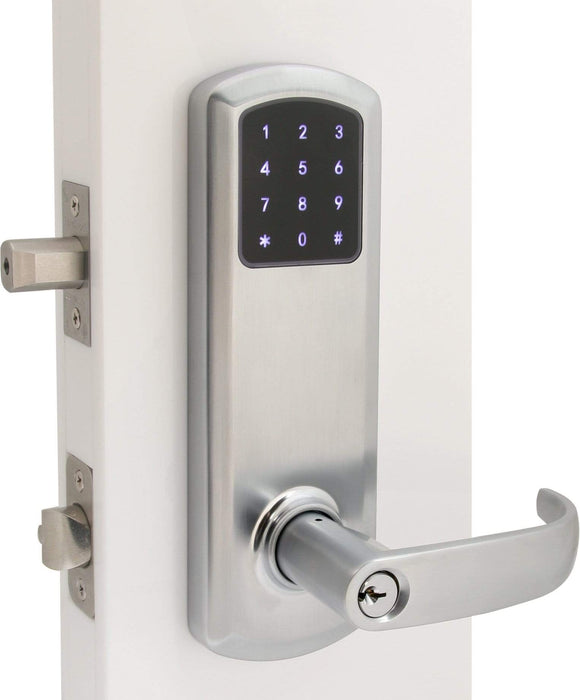

TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center w/WiFi-Satin Chrome

Write A Reviews
  • Vendor : TownSteel
  • SKU : TSL-E-GENIUS-5000S-RF-512-626-RH
  • Weight : 1.0 lb
  • Finish : US26D
See full product details
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 15 business days.

Only 0 TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center w/WiFi-Satin Chrome are available.

variantStock[39642514882649] = 0; variantStock[40329551282265] = 0; variantStock[39642514915417] = 1; variantStock[40329551315033] = 0;
Login For Price

Description

TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center w/WiFi-Satin Chrome

The TownSteel E-Genius Grade 1 Electronic Locks are truly one of a kind.

The main issue with Electronic Locks is that you typically have to get a Lever or Deadbolt which cuts your security in half. Not anymore! The E-Genius is a interconnecting lock that does NOT require any extra hole drilling Just 2 standard 2 1/8" Holes that a standard Commercial Door will (should) have!

Must also purchase this gateway to connect the lock to the internet/ Wi-Fi.

NOTES:

  • You must have either 4" or 5 1/2" on center holes and double check you are ordering the correct one!
  • *All E-Genius Lock backsets are fixed at 2-3/4" If you would like to change this to 2-3/8" please call to have special ordered*
  • Must also purchase this gateway to use the Wi-Fi functionality!

Programming Features

  • 400 user codes interchangeable with RFID keycards/ stickers
  • Code Length: 6 to 10 digits, with anti-pry
  • Powered with 4 AA Alkaline batteries, up to 1 year battery life
  • System Settings: Passage Mode, Verification Mode, and Sound Adjustment
  • Wi-Fi Technology through our mobile app (download in the play store)
  • Must also purchase this gateway

Mechanical Specifications

  • 5 1/2" Center to Center Hole (must be exact)
  • Door Thickness: 1-3/4”
  • Backset: Fixed 2-3/4” standard
  • Clutched Trim
  • Latch bolt: stainless steel, deadlocking, ½”throw
  • Faceplate: 1-1/8“x 2-1/4”
  • Strike: ASA strike standard, 1-1/4” x 4-7/8”

Cylinder Specifications

  • SC4 Key, 6 pin Schlage C keyway

Certifications

  • ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
  • ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
  • UL/ULC -- UL 10C 3-hour rated
  • BAA - Meets guidelines of the Buy American Act
  • ADA - Meets requirements of the Americans with Disabilities Act
  • RoHS - Meets requirements of EU RoHS Directive 2002/95/EC

Warranty

  • 1-year limited for electronic
  • 4-year limited for finish
  • 9-year limited for mechanical

Downloads



TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center w/WiFi-Satin Chrome Specifications

  • Weight : 1.0 lb
  • Finish : US26D
