TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 4" On Center w/Bluetooth-Flat Black

Write A Reviews
  • Vendor : TownSteel
  • SKU : TSL-E-GENIUS-5000S-BLE-4-622-RH
  • Weight : 1.0 lb
  • Finish : US19
See full product details
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 15 business days.
Login For Price

Description

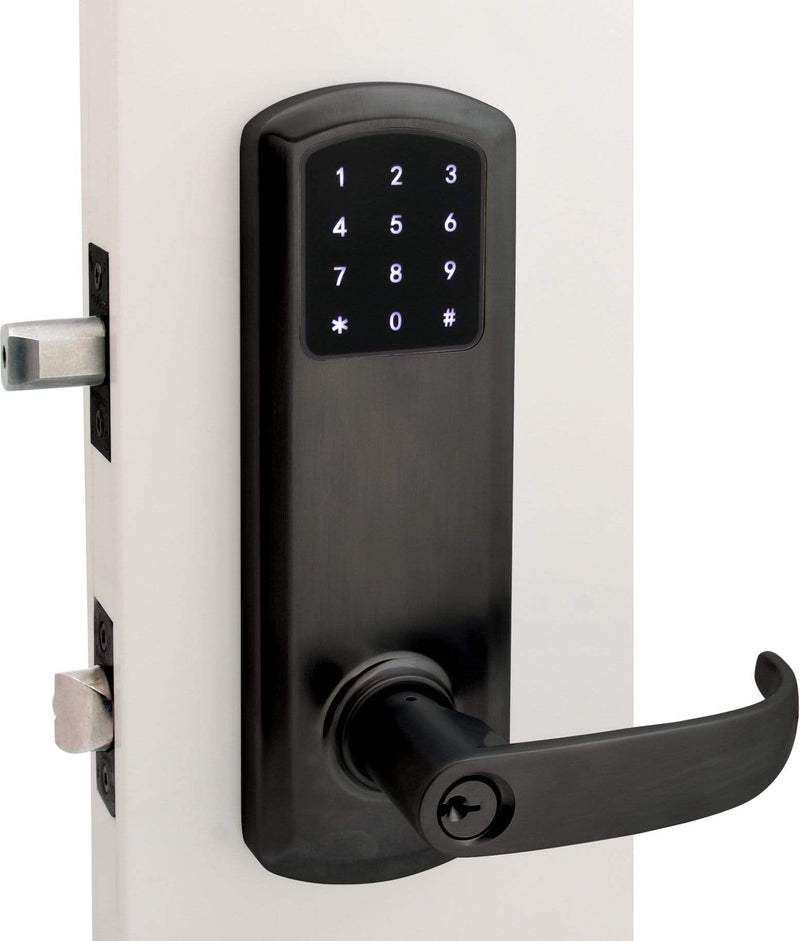

TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 4" On Center w/Bluetooth-Flat Black

The TownSteel E-Genius Grade 1 Electronic Locks are truly one of a kind.

The main issue with Electronic Locks is that you typically have to get a Lever or Deadbolt which cuts your security in half. Not anymore! The E-Genius is an interconnecting lock that does NOT require any extra hole drilling Just 2 standard 2 1/8" Holes that a standard Commercial Door will (should) have!

NOTE:

  • You must have either 4" or 5 1/2" on center holes and double check you are ordering the correct one!
  • *All E-Genius Lock backsets are fixed at 2-3/4" If you would like to change this to 2-3/8" please call to have special ordered*

Programming Features

  • 400 user codes interchangeable with RFID keycards/ stickers
  • Code Length: 6 to 10 digits, with anti-pry
  • Powered with 4 AA Alkaline batteries, up to 1-year battery life
  • System Settings: Passage Mode, Verification Mode, and Sound Adjustment
  • BLE Technology through our mobile app (download in the play store)

Mechanical Specifications

  • 4" Center to Center Hole (must be exact)
  • Door Thickness: 1-3/4”
  • Backset: Fixed 2-3/4” standard
  • Clutched Trim
  • Latch bolt: stainless steel, deadlocking, ½” throw
  • Faceplate: 1-1/8“x 2-1/4”
  • Strike: ASA strike standard, 1-1/4” x 4-7/8”

Cylinder Specifications

  • SC4 Key, 6 pin Schlage C keyway

Certifications

  • ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
  • ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
  • UL/ULC -- UL 10C 3-hour rated
  • BAA - Meets guidelines of the Buy American Act
  • ADA - Meets requirements of the Americans with Disabilities Act
  • RoHS - Meets requirements of EU RoHS Directive 2002/95/EC

Warranty

  • 2-year limited for electronic
  • 5-year limited for finish
  • 10-year limited for mechanical

Downloads



TownSteel E-Genius 5000 Series Grade 1 Interconnected Push Button Electronic Lock 4" On Center w/Bluetooth-Flat Black Specifications

  • Weight : 1.0 lb
  • Finish : US19
