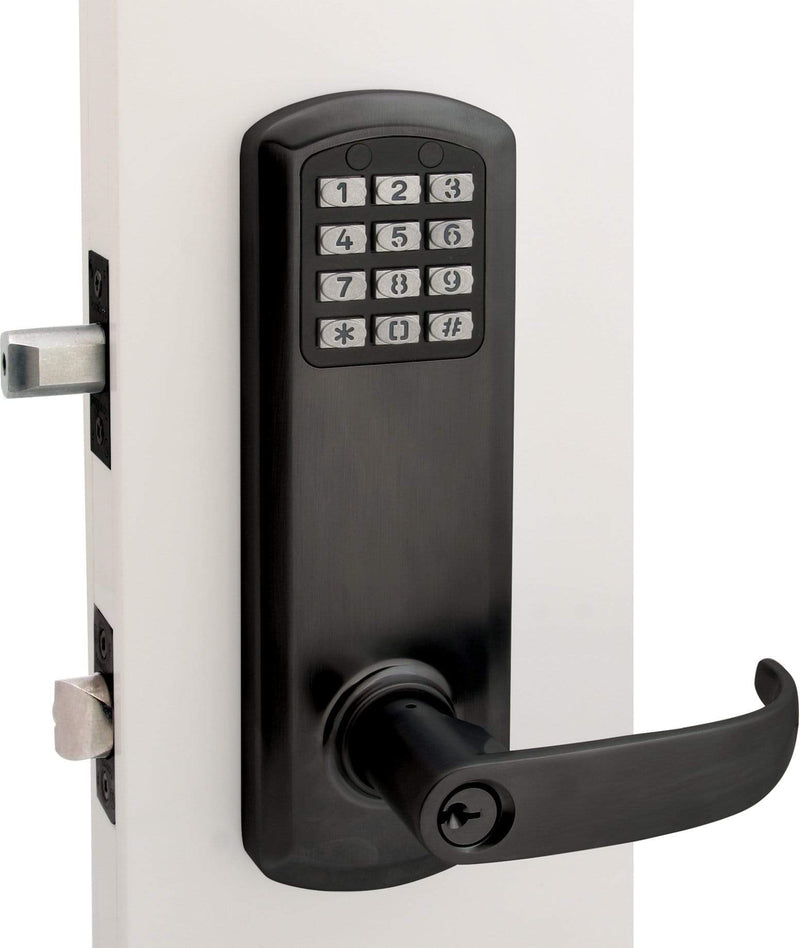

TownSteel E-Genius 2000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center-Flat Black
TownSteel E-Genius 2000 Series Grade 1 Interconnected Push Button Electronic Lock 5 1/2" On Center-Flat Black
The TownSteel E-Genius Grade 1 Electronic Locks are truly one of a kind.
The main issue with Electronic Locks is that you typically have to get a Lever or Deadbolt which cuts your security in half. Not anymore! The E-Genius is an interconnecting lock that does NOT require any extra hole drilling Just 2 standard 2 1/8" Holes that a standard Commercial Door will (should) have!
NOTE:
- You must have either 4" or 5 1/2" on center holes and double check you are ordering the correct one!
- *All E-Genius Lock backsets are fixed at 2-3/4" If you would like to change this to 2-3/8" please call to have special ordered*
Programming Features
- 100 user ID and user codes
- Code Length: 4 to 6 digits
- Powered with 4 AA Alkaline batteries, up to 1-year battery life
- System Settings: Enable/Disable, Lock Status Indicator, Penalty Time, and more
Mechanical Specifications
- 5 1/2" Center to Center Hole (must be exact)
- Door Thickness: 1-3/4”
- Backset: Fixed 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½” throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- SC4 Key, 6 pin Schlage C keyway
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for finish
- 9-year limited for mechanical
Downloads
Specifications
SKU#: TSL-E-GENIUS-2000S-512-622-RH
weight: 1.0 lb
Download(s):
Vendor: TownSteel Inc
