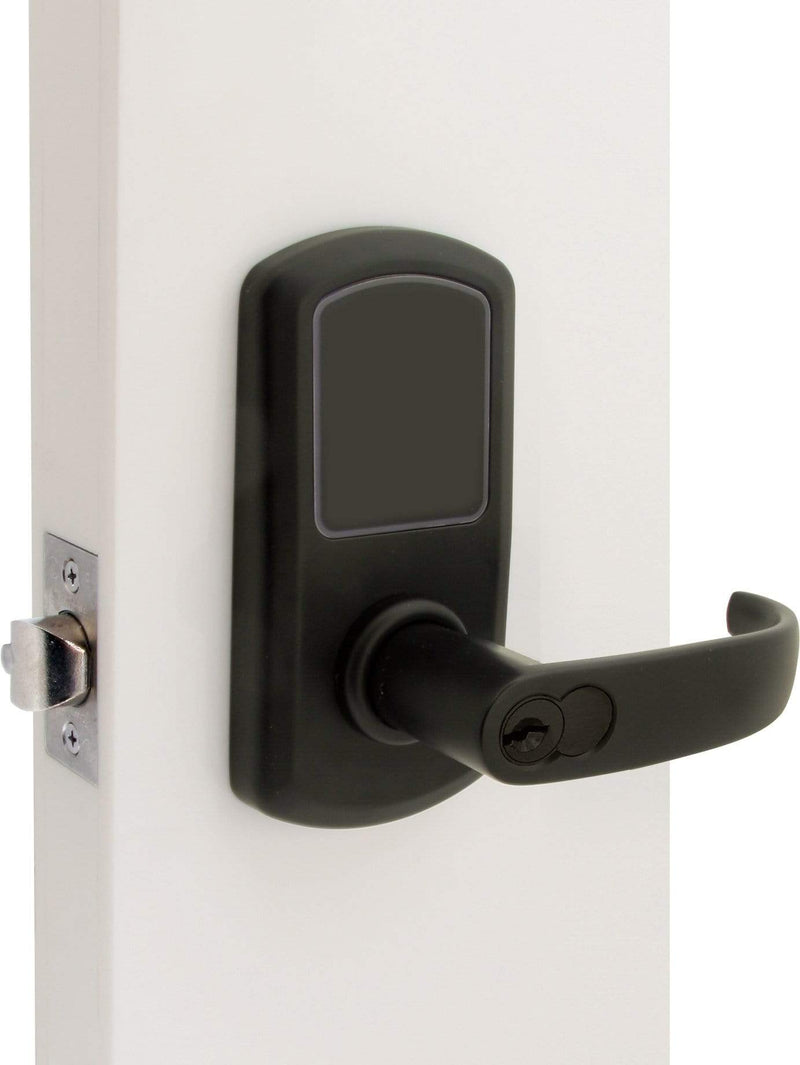

TownSteel E-Elite 5000 Series Grade 1 Touch Screen Electronic Lock w/Bluetooth -Flat Black
The TownSteel E-Elite Grade 1 Electronic Locks are truly one of a kind.
Why? Because they don't require ANY extra drilling in the door! Just a standard 2 1/8" Hole with through bolts like standard Commercial Doors will (should) have!
Programming Features
400 user codes interchangeable with RFID keycards/ stickers
Code Length: 6 to 10 digits, with anti-pry
Powered with 4 AA Alkaline batteries, up to 1 year battery life
System Settings: Passage Mode, Verification Mode, and Sound Adjustment
BLE Technology through our mobile app (download in the play store)
Mechanical Specifications
Door Thickness: 1-3/4”
Backset: 2-3/4” standard
Clutched Trim
Latch bolt: stainless steel, deadlocking, ½”throw
Faceplate: 1-1/8“x 2-1/4”
Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
SC4 Key, 6 pin Schlage C keyway
Certifications
ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
UL/ULC -- UL 10C 3-hour rated
BAA - Meets guidelines of the Buy American Act
ADA - Meets requirements of the Americans with Disabilities Act
RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
