Rim Cylinder Yale Y1 Keyway US10B (Oil Rubbed Bronze) Cylinders & Hardware GMS Industries
Feedback Help us improve our product images

Rim Cylinder Yale Y1 Keyway US10B (Oil Rubbed Bronze)

Write A Reviews
  • Vendor : GMS Industries
  • SKU : R118-YA-10B
  • Weight : 0.88 lb
  • Standards : Can easily be rekeyed or master keyed using the keyway OEM Specifications. Direct replacements for Schlage, Yale, Corbin, Kwikset & more
  • Keys : 2 Included
  • Keying : KA2 (Keyed Alike in Pairs)
  • Alternative Part Number(s) : 7075YA-10B
  • Download(s): Click to view GMS_Rim_Cylinders.pdf
See full product details
$ 8.14 - $ 8.14
$ 8.14
$ 8.14 - $ 8.14
$ 8.14
In Stock

Only 11 Rim Cylinder Yale Y1 Keyway US10B (Oil Rubbed Bronze) are available.

variantStock[3417890305] = 11;
$ 8.14 - $ 8.14
SubTotal : $ 8.14
$ 8.14 - $ 8.14
SubTotal : $ 8.14

Description

The Yale Y1 Keyway 1 1/8" Rim Cylinder with US10B finish is made of solid brass and is compatible with the Y1 and Y2 keys. This cylinder is specifically designed to meet the exact pinning specifications of original Yale systems. The tailpiece converts between horizontal and vertical positions. This cylinder comes keyed 5-pin (Y1) but can have a 6th pin (Y2) added.

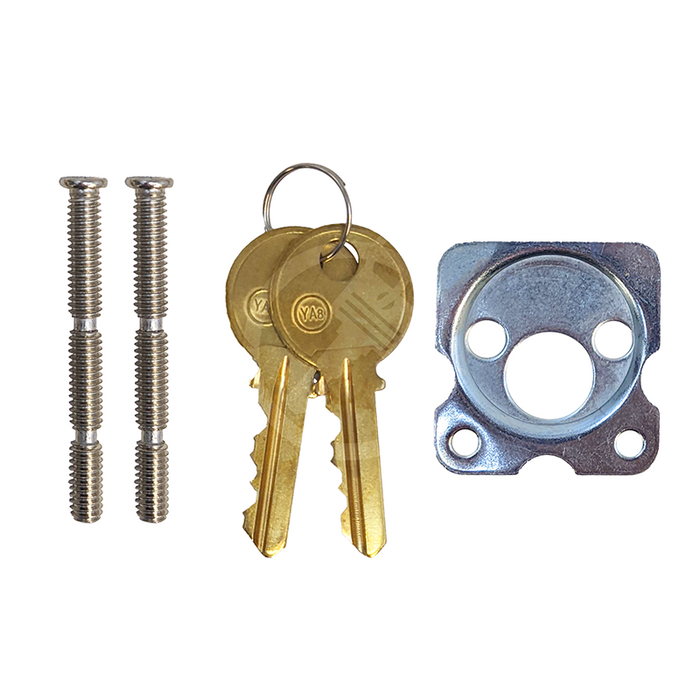

  • Comes with 2 Keys
  • 1 1/8" Length
  • Tailpiece converts between horizontal and vertical positions
  • Most Imported Locksets and Deadbolts

Rim Cylinder Yale Y1 Keyway US10B (Oil Rubbed Bronze) Specifications

  • Weight : 0.88 lb
  • Standards : Can easily be rekeyed or master keyed using the keyway OEM Specifications. Direct replacements for Schlage, Yale, Corbin, Kwikset & more
  • Keys : 2 Included
  • Keying : KA2 (Keyed Alike in Pairs)
  • Alternative Part Number(s) : 7075YA-10B
  • Country Of Origin : China
  • Condition : New
  • Material : Solid Brass
  • Pin Length : Drilled 6, Pinned 5
  • Keyway : Yale
  • Finish : US10B
  • Download(s): Click to view GMS_Rim_Cylinders.pdf
