Description

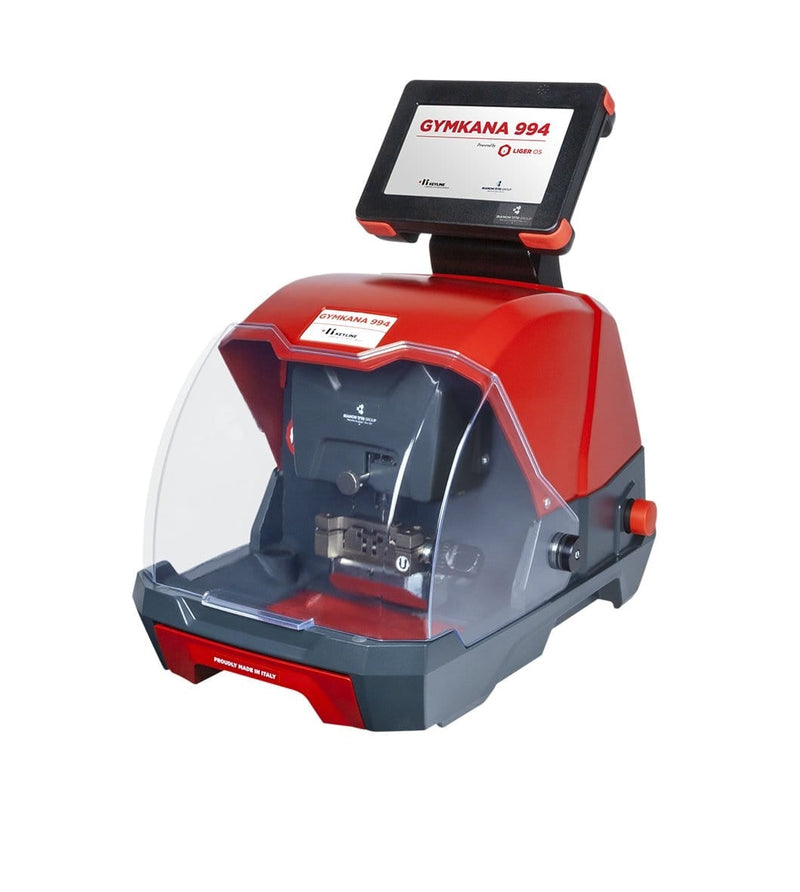

The Keyline GYMKANA 994 Machine

Cut By Code and/or Duplicate AUTOMOTIVE High Security and Edge Cut Keys

The GYMKANA is a Automotive Key Machine, it will not cut keys like KW1, SC1, M1, Y11, etc.

Intuitive software

• Faster software loading, intuitive screen prompts
• Software updates easily done via USB memory stick or Internet

Universal Clamp

• Z-axis allows for new self-aligning universal clamp (works for 994 Laser A/B/C/D/F/G   clamp applications)
• Optional clamp for 6-cut Tibbe
• No tip stops or adapters needed

Universal cutter and tracer

• One cutter and tracer used for high security and double-sided edge cut applications
• 2mm carbide cutter and tracer are easy to change out and replace

Ergonomic design

• User-friendly design features large safety shield and mounting bracket for console or tablet
• Chip tray easily removes for chip disposal

Versatile

• Perfect for shop or mobile operations
• Android software app also available for maximum versatility

Machine Specs

• POWER: 110/60Hz MOTOR:
• Brushless CUTTER SPEED: 3000-8000 rpm (variable)
• KEY READING: Electric contact
• LIGHTING: LED illuminated cutting bay
• USER INTERFACE: 7” color touch screen, 16:10, resolution 800 x 480 px, VGA
• ELECTRONIC EQUIPMENT: Mainboard with iMX6 CPU, 1 GB RAM, 4 GB memory
• WEIGHT: 42 lbs.
• DIMENSIONS: 12” W x 18” D x 12” H (machine); 8” W x 6” D x 3” H (console)
