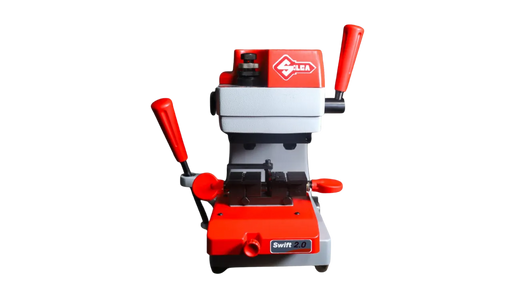

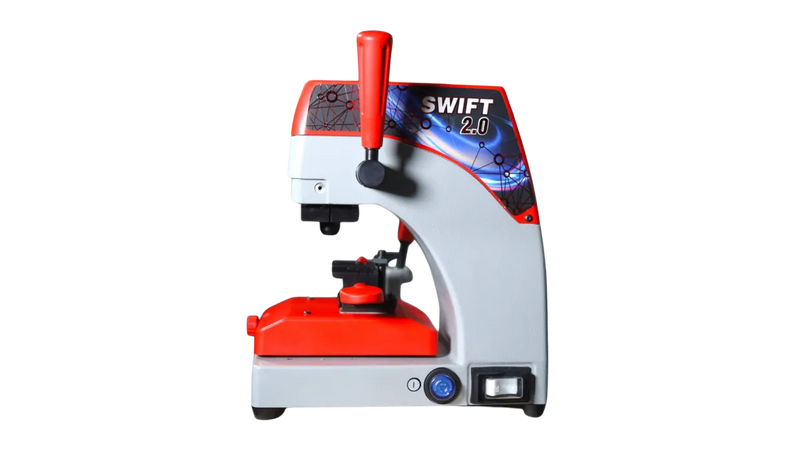

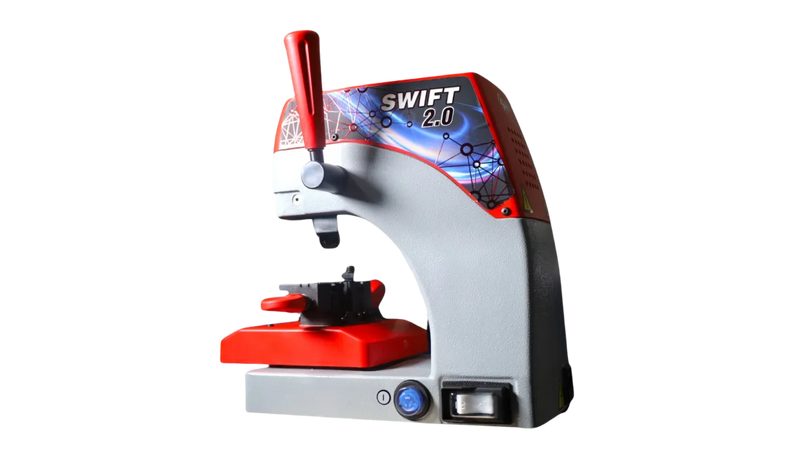

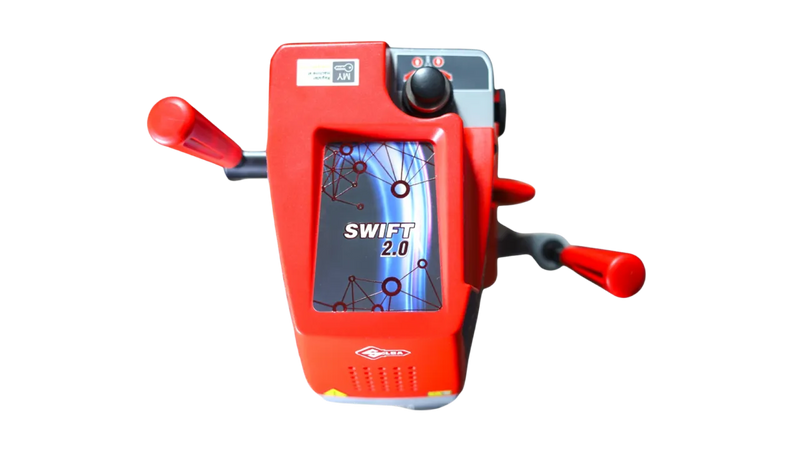

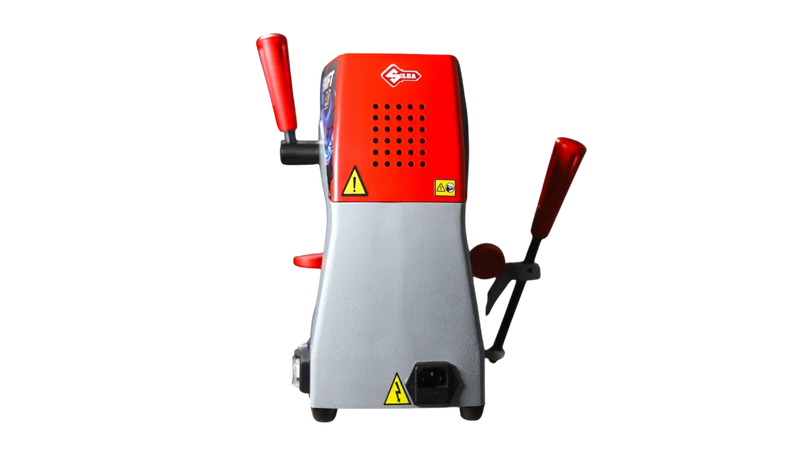

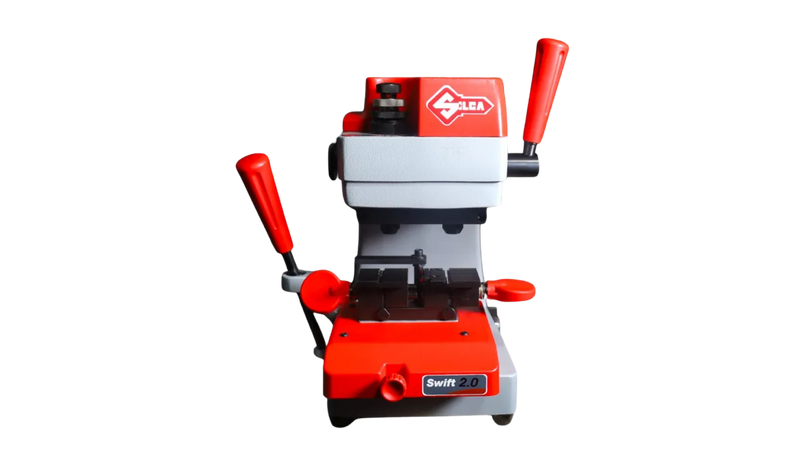

Ilco Swift 2.0 Mechanical Key Cutting Machine
The best mechanical duplicator for laser, dimple, and tubular keys!
Based on the existing Swift Plus platform, the all-new Swift 2.0 features a fresh aesthetic appearance and enhanced carriage design for
smoother operation. Lightweight and compact, this model is ideal for mobile use or where counter space is limited, making it perfect asΒ an entry-level mechanical key cutting machine for duplicating laser, dimple, and tubular keys.
Features Include:
- Built-in accessory tray on top of hood.
- Compact dimensions save workspace on counter or for mobile use.
Ergonomic grips. - Ergonomically designed levers provide user comfort and control.
- HSS TiN coated cutters for longevity.
- Improved carriage design results in a better overall user experience during the duplication process.
- LED lighting illuminates the work area.
- Master safety switch with separate cutter motor switch.
- Easily replaceable cutter side jaws.
- Quick calibration of Z-axis for laser keys using calibration bars.
- Safety shield.
- Spring-loaded tracer point and nickel-plated adjustment ring provide accurate calibration for dimple keys.
Technical Data:
- Power Supply: 120V/50-60Hz,1.7 Amp, 240 Watt
- Motor: .2 hp, single phase and speed, 6000 rpm (+/-10%)
- Movement: Three axis via linear bearings
- Carriage Runs:Β X axis: .95 in (24 mm)Β Y axis: 2 in (50 mm)Β Z vertical axis: .87 in (22mm)
FAQs
Is the Ilco Swift 2.0 a manual or automatic key machine?
Ilco Swift 2.0 is a manual mechanical key cutting machine, specifically designed for duplicating laser, dimple, and tubular keys offering hands-on control for locksmiths and hardware professionals.
How does a mechanically cut key work?
A mechanically cut key works by matching its cuts to the pins inside a lock. When the pins line up at the shear line, the lock turns and opens.
Specifications
SKU#: ILC-D8A8871ZB-SWIFT-2.0
weight: 20.0 lb
Download(s): Click to view 2024_Swift_2.0_Brochure.pdf
Vendor: Ilco
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function:
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply : 120V/50-60Hz,1.7 Amp, 240 Watt
Warranty :
Feature(s) :
Keyway:
