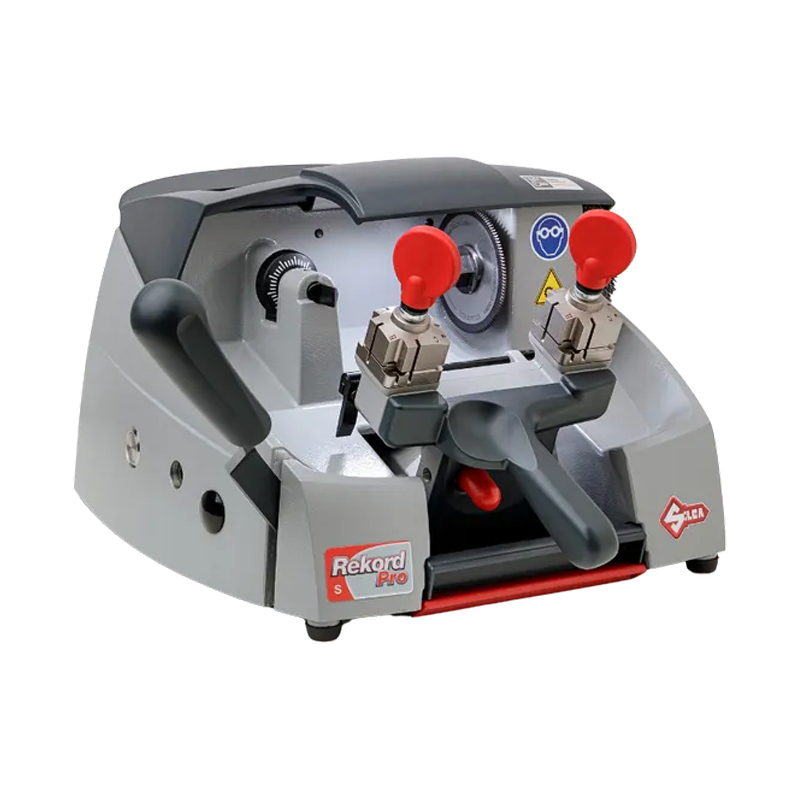

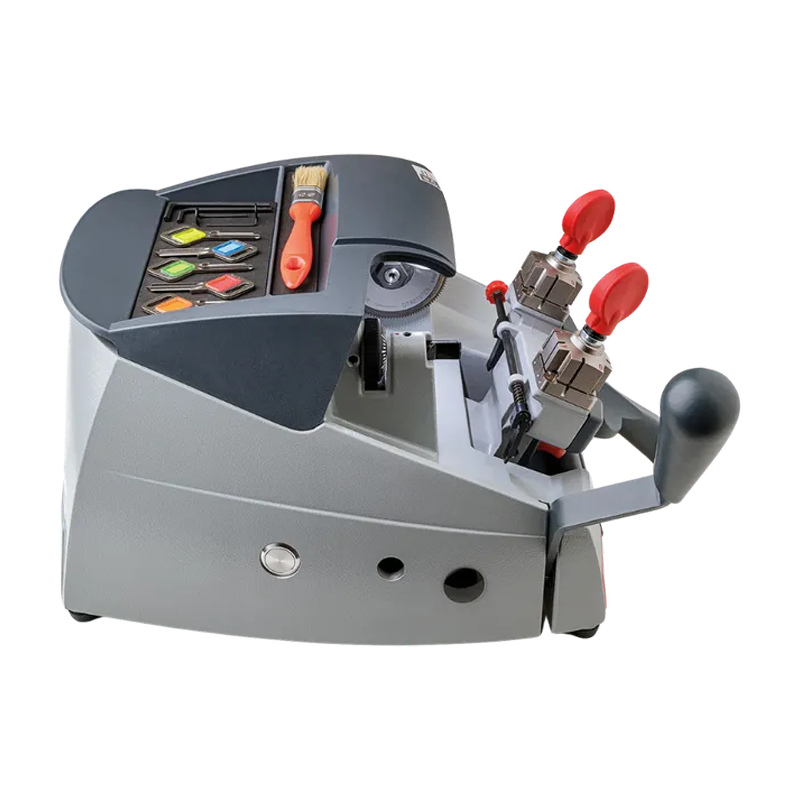

Ilco Rekord Pro S Semi-Automatic Key Machine
The Rekord Pro S is a high-performance mechanical key cutting machine designed for precise duplication of cruciform, residential, and automotive edge-cut keys. Featuring an automatic cutter motor that activates when the carriage is raised, it streamlines the cutting process for maximum efficiency.
A powerful LED strip light positioned above the cutter ensures a well-lit work area, enhancing visibility and accuracy. With its compact and durable design, the Rekord Pro S is perfect for both locksmith shops and mobile vans, delivering reliability and ease of use wherever you need it.
Features
- Quick rotation clamps with ergonomic handles
- Long-life TiAlN coated cutter made from HSS Super Rapid Steel
- Precise carriage movements with self-lubricating DU® bushes
- Automatic cutter starting for safety

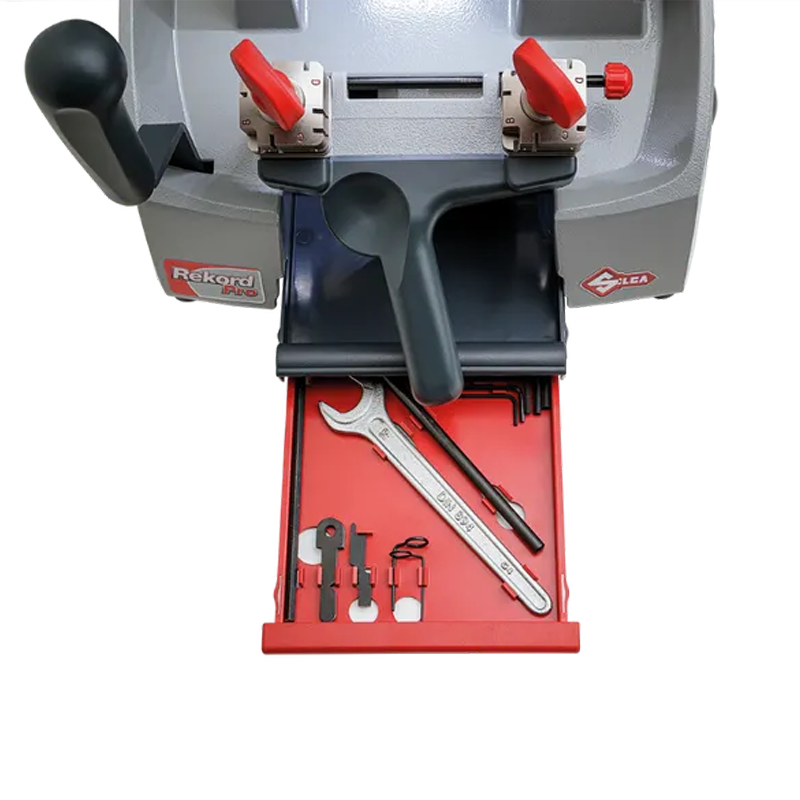

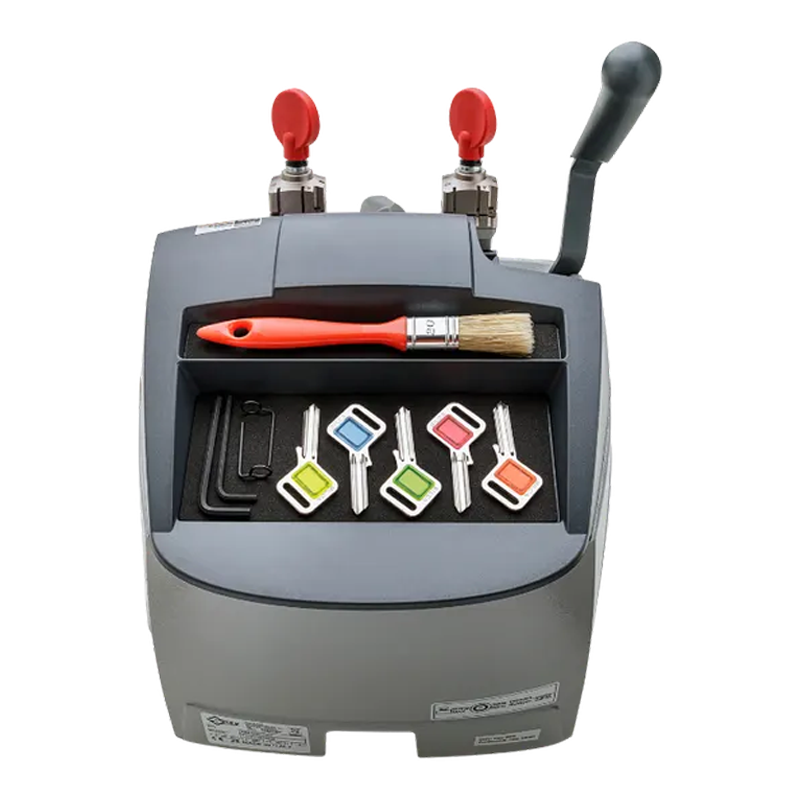

- Integrated tool storage with an anti-slip mat and pull-out compartment.
- Easy calibration with a mechanical tracer point and micrometric adjustment ring
- LED strip light for perfect illumination of the working area
- Safety cut-out on the on-off switch to prevent accidental starts
- Tynex coated de-burring brush for a perfectly finished key
Technical Data
- Cutter motor: single phase
- Power supply: 120V-50/60Hz - 440W 2A
- Cutter speed: 1350/1620 rpm
- Movements: by gear on rectified carriage
- Prismatic cutter: HSS (Super Rapid Steel), TiAlN coated
- Clamp: rotating, 4-sided
- Carriage runs: 43 mm (max. length of cuts)
- Width: 330 mm (including lever: 510 mm),
- Depth: 430 mm, Height: 270 mm
- Weight: 42 lbs
