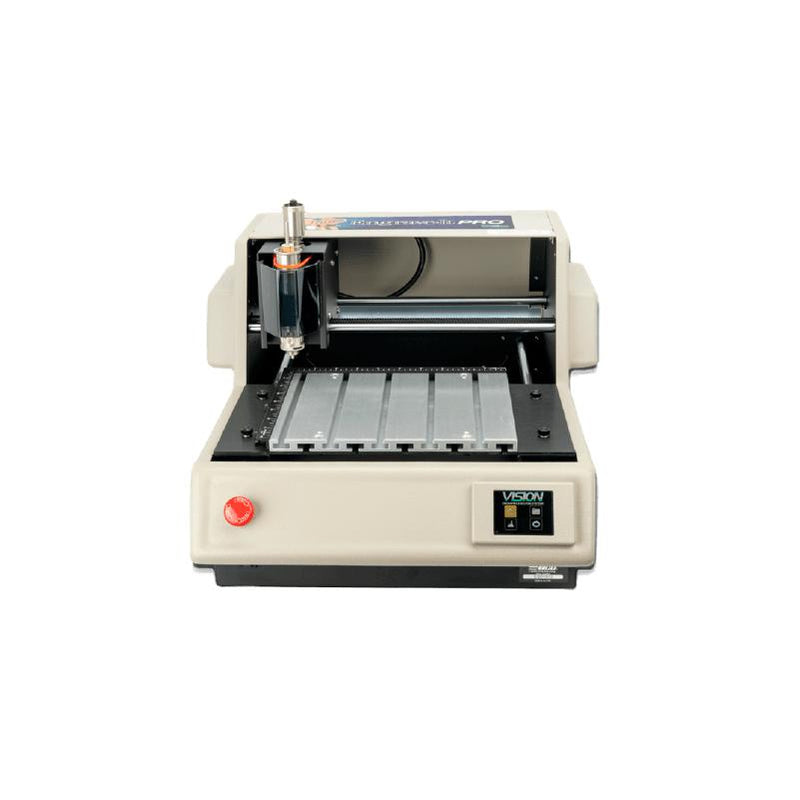

Ilco Engrave-It Pro

Write A Reviews
  • Vendor : Ilco
  • SKU : ILC-ENGRAVEIT-PRO
  • Weight : 60.0 lb
  • Dimensions : 19"W x 22"D x 19"H
See full product details
Original price $ 10,846.33 - Original price $ 10,846.33
Original price
$ 10,846.33
$ 10,846.33 - $ 10,846.33
Current price $ 10,846.33
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 8 business weeks.

Only 0 Ilco Engrave-It Pro are available.

variantStock[39382303146073] = 0;
Original price $ 10,846.33 - Original price $ 10,846.33
Original price
SubTotal : $ 10,846.33
$ 10,846.33 - $ 10,846.33
Current price SubTotal : $ 10,846.33

Description

A Professional Engraver for the Lock Shop or Institutional Environment

The Engrave-It™ Pro is simple to operate and designed to provide maximum versatility for engraving a broad range of items in both the lock shop and institutional environment. This unit is capable of marking keys, typical lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, etc.

The Engrave-It PRO lets the operator select either “diamond drag” or rotary cutter engraving styles. Using powerful engraving software (with customer-supplied PC) the operator can quickly select from a menu list of common tasks or create their own custom settings.

Durable and versatile, the Engrave-It PRO delivers consistent, professional results.

  • Sequential numbering
  • Custom lettering for marking keys, popular lock cylinders, and other items
  • Capable of “fine” Engraving for presentation plaques, etc.
  • Variety of fonts and marking styles
  • Various clamping options were provided to secure items being engraved
  • New V-Touch multi-functional touch screen
  • Red laser pointer for easy job set-up
  • Vision PRO 10 “Expert” software package

Accessories Included in Kit

  • USB Memory Stick (holds Engrave-It™ PRO software, Installation Guide, Tutorial and User Manual)
  • Two diamond tip cutters
  • Ethernet to USB adapter (to allow connection to machine and internet)
  • Deep vise
  • Quick-lock vise
  • and much more!

Key Holders

Over 100 different trays that hold from 12 to 24 key blanks (depending on the specific key). Contact your Ilco distributor for details on developing a custom key holder.

Specialty Holders

Over 40 specialty holders are available for engraving on cylinders, IC cores, padlocks, pet tags, brass plates, and more.

Technical Data

  • Software: Vision Expert 10
  • Movement: Stepper motor controlled engraving head positioning
  • Interface: Ethernet Speed: X-Y Axis = .0002” 5”/second
  • Warranty: 1-Year Limited Warranty
  • Power: 110/220 2 Amp
  • Dimensions: 19”W x 22”D x 14.5”H
  • Weight of machine: 45lbs
  • Shipping Weight: 60lbs
  • Computer Specs: A customer-supplied PC is required to operate the Engrave-It PRO.
    • Minimum system requirements — Single Core 2 GHz CPU, 5 GB Hard Drive, 1GB RAM, Windows 7 or higher (32 bit or 64 bit) Operating System.
    • Recommended system requirements — Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM, Windows 7 (32 bit or 64 bit)




Ilco Engrave-It Pro Specifications

  • Weight : 60.0 lb
  • Dimensions : 19"W x 22"D x 19"H
