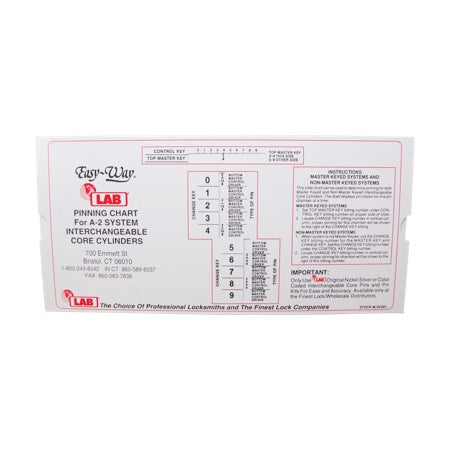

This slide chart can be used to determine pinning for both Master Keyed and Non-Master Keyed Interchangeable Core Cylinders. The chart displays pin stacks for one pin chamber at a time.
