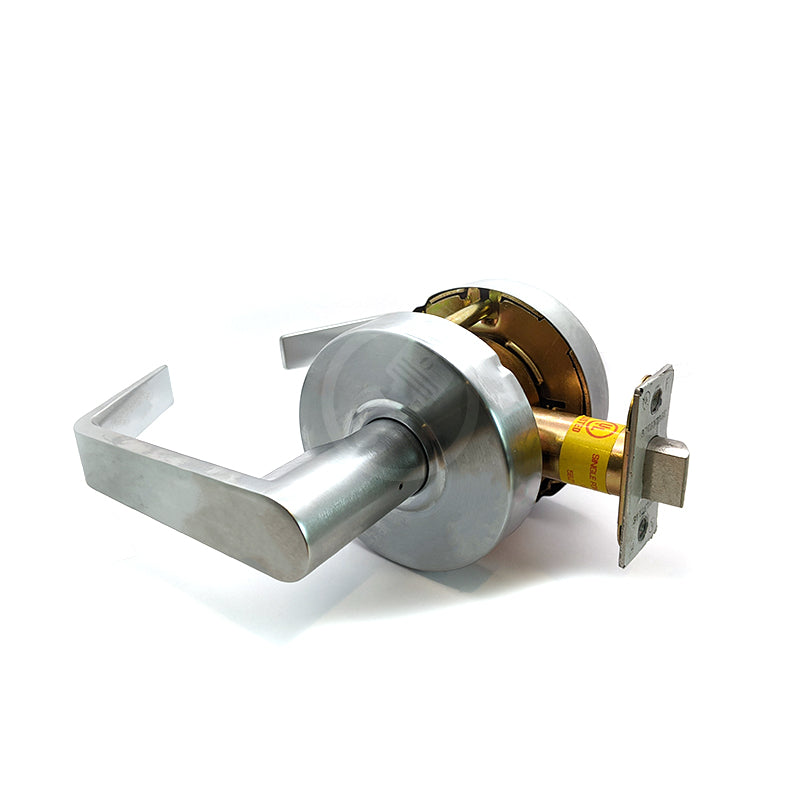

Advantage Grade 2 Commercial Passage Lever 26D (CLUTCH)

Write A Reviews
  • Vendor : PHG
  • SKU : EZ3V5012
  • Weight : 4.33 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Download(s): Click to view E-Series-Installation-Instructions.pdf
See full product details
Original price $ 64.82 - Original price $ 64.82
Original price
$ 64.82
$ 64.82 - $ 64.82
Current price $ 64.82
In Stock
Original price $ 64.82 - Original price $ 64.82
Original price
Total : $ 64.82
$ 64.82 - $ 64.82
Current price Total : $ 64.82

Description

Advantage Grade 2 Commercial Passage Lever 26D (CLUTCH)

Alt Part Number(s): EV501CT26D

Features:

  • Independent torsion spring
  • Fast and easy installation
  • Clutch function standard
  • Removable through bolt
  • Panic proof (inside always free)
  • Concealed mounting screws
  • ADA compliant ANSI A117.a Barrier Free Accessibility
  • 3 Hours Fire rating UL10C/UBC 7-2 )1997) Positive Pressure Rated
  • ANSI Grade 2 ANSI/BHMA  A156.2.-2003 Series 400, Grade 2 Exceeds 400,000 cycles
  • California State Reference Code Formerly title 19
  • Lifetime Mechanical Warranty
  • BHMA Certified
  • Clutch Function
  • Latch- Mortise 2-3/4" Backset, 2-3/8" Sold Separate

Specifications:

  • Door Fitting: 1-3/8" ~ 2" door standard. Factory preset at 1-3/4". Thru-bolt CTC: 2-3/4"
  • Exposed Trim: Wrought brass. Pressure cast zinc lever
  • Lock Chassis: Heavy gauge dichromated stee, featuring a solid zinc rosette on both the int. and ext. for added security
  • Latch: 1/2" throw stainless steel latch bolt. Square corner faceplate standard, UL listed, floating latch design fits both flat or beveled doors 1/8" in 2"
  •   2-3/4" backset: 1-1/8" X 2-1/4" faceplate.
  •   2-3/8" backset: 1" X 2-1/4" faceplate
  • Strike:  ASA Strike standard (9109)
  • Handing: Universal, non-handing
  • Screws: Combination screws for both metal and wood doors

Availability-7 days

Advantage Grade 2 Commercial Passage Lever 26D (CLUTCH) Specifications

  • Weight : 4.33 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Thru Bolt : Yes, Removeable
  • Warranty : Lifetime Mechanical Warranty
  • Cross Bore : 2-1/8"
  • Edge Bore : 1"
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Solid brass SC4 6-pin You can replace the cylinder with any K001 Cylinder
  • Clutch Function : Yes
  • Alternative Part Number(s) : 501EV-CT-US26D
  • Country Of Origin : Taiwan
  • Condition : New
  • Function : Passage
  • Finish : US26D
  • Download(s): Click to view E-Series-Installation-Instructions.pdf
