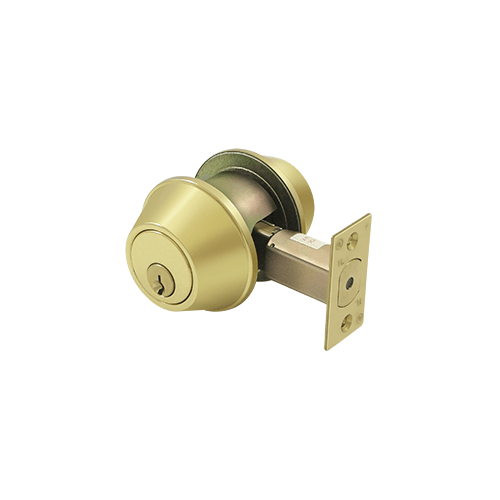

Grade 2 Single Cylinder Deadbolt US3

Write A Reviews
  • Vendor : PHG
  • SKU : EZ300603
  • Weight : 1.92 lb
  • Latch : UL Listed 1” throw solid brass deadbolt latch with hardened steel rod insert. 1” x 2-1/4” faceplate adjustable mortise deadbolt latch (L90A0T) with faceplate adapter
  • Strike Plate : Standard deadbolt strike (9121) 1-1/8” x 2-3/4”, and 1/8” wood frame reinforcer package (9221)
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
See full product details
Original price $ 33.32 - Original price $ 33.32
Original price
$ 33.32
$ 33.32 - $ 33.32
Current price $ 33.32
In Stock
Original price $ 33.32 - Original price $ 33.32
Original price
Total : $ 33.32
$ 33.32 - $ 33.32
Current price Total : $ 33.32

Description

Grade 2 Single Cylinder Deadbolt US3

Applications For offices, schools, hospitals, apartments, hotel/motel and other public buildings.

  • Door Ranges 1-3/8” ~ 2” door thickness (35 ~ 51 mm).
  • Backset 2-3/4”(70 mm) standard or 2-3/8” (60 mm).
  • Strike 1-1/8" x 2-3/4 x 5/64" rectangular, square corner.
  • Latchbolt 1" throw solid brass bolt with hardened steel rod insert. 1" x 2-1/4" faceplate mortise deadbolt.
  • ANSI Grade II Standards Meets or exceeds requirement of BHMA/ANSI A156.2.
  • Keying 6-pin tumbler cylinder, 2 keys per lock. Keying job is available upon request.
  • Features Schlage SC4 keyway
  • Fast and easy installation

Availability-7 days

Grade 2 Single Cylinder Deadbolt US3 Specifications

  • Weight : 1.92 lb
  • Latch : UL Listed 1” throw solid brass deadbolt latch with hardened steel rod insert. 1” x 2-1/4” faceplate adjustable mortise deadbolt latch (L90A0T) with faceplate adapter
  • Strike Plate : Standard deadbolt strike (9121) 1-1/8” x 2-3/4”, and 1/8” wood frame reinforcer package (9221)
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Keys : 2
  • Warranty : Lifetime Mechanical Warranty
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Solid brass SC4 6-pin You can replace the cylinder with any K001 Cylinder
  • Clutch Function : No
  • Alternative Part Number(s) : 200LU-US3
  • Condition : New
  • Function : Deadbolt
  • Finish : US3
