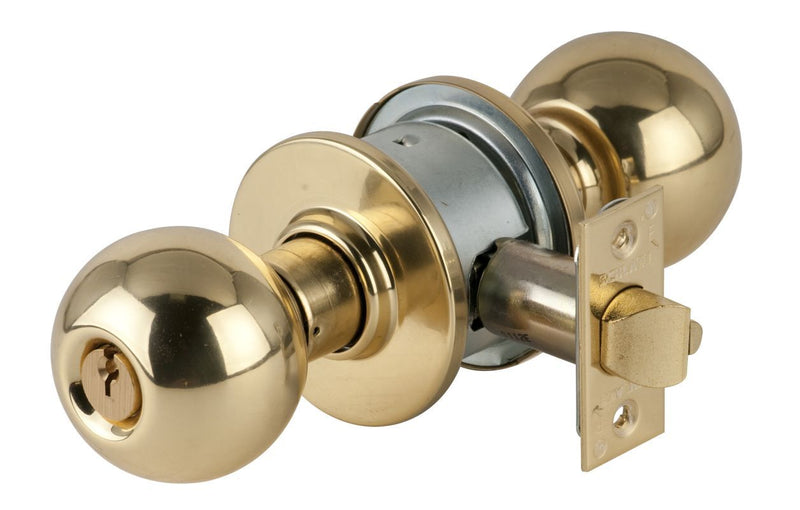

Grade 2 Commercial Knob Entry Grade 2 US3

Write A Reviews
  • Vendor : PHG
  • SKU : EZ333003
  • Weight : 3.4 lb
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Keys : 2
  • Warranty : Lifetime Mechanical Warranty
See full product details
Original price $ 44.68 - Original price $ 44.68
Original price
$ 44.68
$ 44.68 - $ 44.68
Current price $ 44.68
In Stock
Original price $ 44.68 - Original price $ 44.68
Original price
SubTotal : $ 44.68
$ 44.68 - $ 44.68
Current price SubTotal : $ 44.68

Description

Grade 2 Commercial Knob Entry Grade 2 US3

Features

  • SC4 6-pin Standard
  • Concealed Mounting Screws
  • 1 Piece Bulging High Security Knob
  • Fast and Easy Installation
  • Panic Proof (inside always free)
  • ANSI GRADE 2
  • ANSI/BHMA A156.2-2003
  • Series 4000, Grade 2
  • Exceeds 400,000 cycles
  • 3 hours Fire rating
  • UL10C/UBC 7-2(1997)
  • Positive Pressure Rated

Specifications

  • Door Fitting 1-3/8” ~ 1-3/4” door thick. 2” door thick optional.
  • Exposed Trim Wrought brass or stainless steel.
  • Lock Chassis Heavy gauge dichromated steel.
  • Cylinder Solid brass SC4 6-pin standard.
  • Latch 1/2” throw stainless steel latch bolt.
  • 2-3/4” backset-1-1/8” x 2-1/4” faceplate mortise latch
  • Drive-in latch available.
  • Strike T-Strike standard (9106).
  • Screws Combination screws for both metal and wood doors.
  • Keys 2 brass keys per set.

Availability-7 days

Grade 2 Commercial Knob Entry Grade 2 US3 Specifications

  • Weight : 3.4 lb
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Keys : 2
  • Warranty : Lifetime Mechanical Warranty
  • Cylinder : Solid brass SC4 6-pin You can replace the cylinder with any K001 Cylinder
  • Clutch Function : No
  • Alternative Part Number(s) : 100EA-BA-US3
  • Condition : New
  • Function : Entrance
  • Finish : US3
