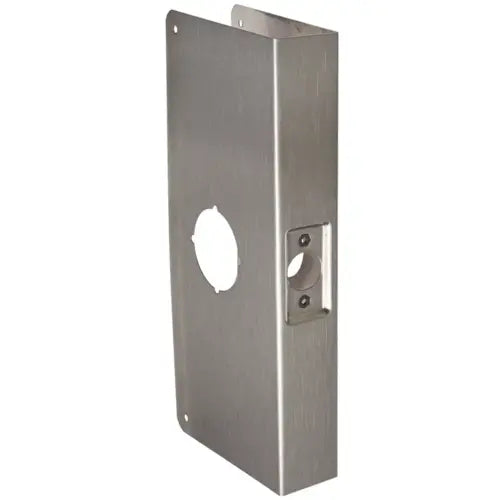

Don-Jo Door Wrap Around Plate 5-1/8" x 12"
The Don-Jo Wrap Around Plate is a heavy-duty stainless steel reinforcement solution engineered for commercial and residential door security. Measuring 5-1/8" wide by 12" tall, this 22-gauge satin stainless steel plate provides comprehensive protection around cylinder lock areas, effectively concealing damage while restoring structural integrity. Designed for 1-3/4" thick doors with 2-1/8" diameter cylinder locks and a 2-3/4" backset, this wrap-around plate distributes force evenly across the door surface, preventing further deterioration from repeated lock strikes or attempted forced entry. The generous 5-1/8" width ensures maximum coverage of vulnerable areas surrounding the lock mechanism. Installation is straightforward with four included truss head screws that secure the plate firmly in place. The satin stainless steel finish resists corrosion and weathering, making it ideal for both interior and exterior applications. Whether you're upgrading security on aging doors or repairing existing damage, this Don-Jo plate delivers professional-grade durability and lasting protection.
- Dimensions:Ā 5-1/8" W x 12" H.
- Material:Ā 22 Gauge Stainless Steel.
- Finish:Ā Satin Stainless Steel (630).
- Door Thickness:Ā 1-3/4".
- Backset:Ā 2-3/4".
- Hole Diameter:Ā 2-1/8" (Standard).
- Included Hardware:Ā Typically includes 4 truss head screws for installation.
- Usage:Ā Secures, reinforces, or repairs damaged lock areas on doors.
Specifications
SKU#: DON12-S-CW
weight: 1.0 lb
