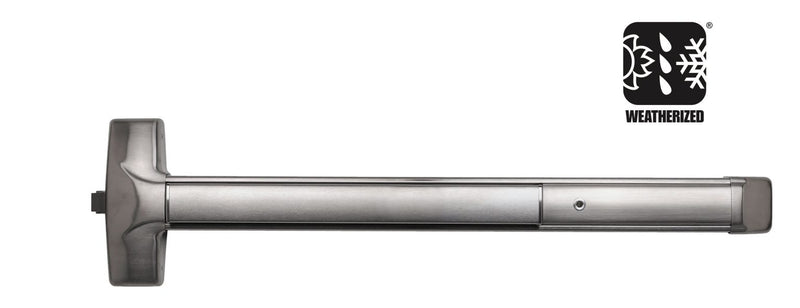

Detex Advantex Super-Heavy Duty 36" Weatherized Rim Exit Device | 10W Series | US32D

The Detex Advantex 10W Series 36" Weatherized Rim Exit Device in US32D Satin Stainless Steel finish delivers unmatched durability and performance in demanding environments. Engineered as super-heavy-duty panic and fire exit hardware, this Grade 1 device is ideal for both single and double doors with mullions. Built to withstand extreme weather and heavy abuse, it features all exposed surfaces finished over stainless steel with a PVD coating for superior corrosion resistance—perfect for exterior or high-traffic applications.

The patented mounting plate and strike locator system ensures the fastest and most accurate installation in the industry, eliminating the need for paper templates. Designed with a non-handed, field-sizeable configuration, the 10W Series offers flexibility for multiple door types and sizes. A stainless steel deadlocking Pullman latch bolt provides secure operation, while the angled end cap design helps deflect impact away from the device, extending its service life.

Tested to ANSI/BHMA A156.3 standards, UL Listed for panic and fire exit hardware, and compliant with NFPA 80 & 101, this weatherized device is built for maximum reliability and safety in the harshest conditions.

Features:

• Super-heavy-duty Grade 1 panic and fire exit device for extreme environments

• Weatherized design with PVD-finished stainless steel surfaces for corrosion resistance

• Patented mounting plate and strike locator for quick, precise installation

• Stainless steel deadlocking Pullman-type latch bolt for secure locking

• Non-handed and field-sizeable for flexible door compatibility

• Heavy-duty angled end cap deflects damage away from the device

• Designed for aluminum, wood, hollow metal, and composite doors

• Surface-mounted 99 strike for secure, straightforward installation

• ADA compliant, UL Listed, and ANSI/BHMA certified

Specifications:

• Access Type: Mechanical Rim Exit Device

• Door Width: 36" (standard)

• Handing: Field reversible, non-handed

• Finish Code: US32D – Satin Stainless Steel

• Latch Type: Deadlocking Pullman-type latch bolt

• Dogging Mechanism: 1/8 turn hex dogging

• Grade: ANSI/BHMA Grade 1

• Certifications: UL Listed Panic Hardware, UL Fire Exit Hardware (3 hours)

• Standards: Meets NFPA 80 & 101, UBC 97, UL10B/UL10C Positive Pressure

• Weather Resistance: Fully weatherized for exterior use

• Series: Advantex 10W Series

• Strike: 99 Surface Strike

The Detex Advantex 10W Series Weatherized Rim Exit Device provides the ultimate combination of strength, weather protection, and ease of installation—making it the preferred choice for securing high-traffic exterior exits in commercial, institutional, and industrial settings.
