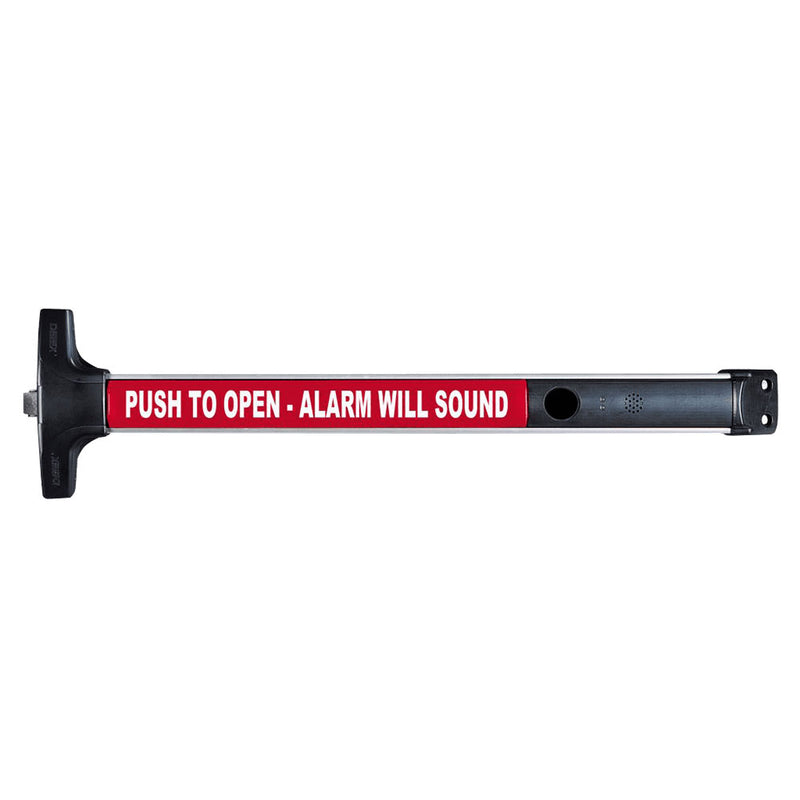

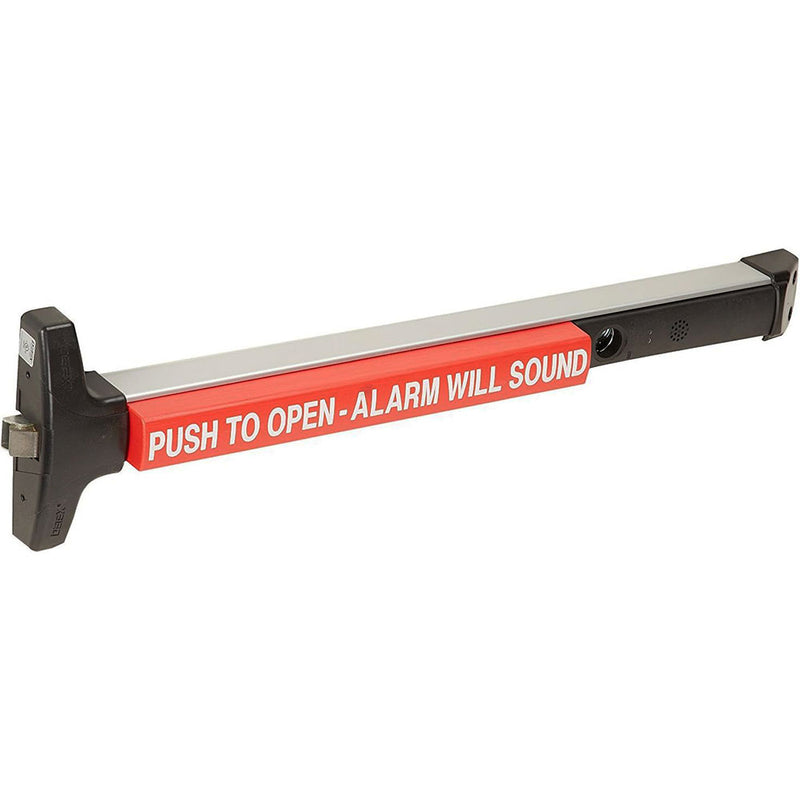

Detex Heavy Duty 36" Alarmed Rim Exit Device | V40 Value Series | US28

Write A Reviews
  • Vendor : Detex
  • SKU : DTX-V40EB-628-36
  • Weight : 33.07 lb
  • Dogging : CD - Cylinder Dogging
  • Materials : Chassis & Push Bar - Extruded Aluminum Latch Bolt - Stainless Steel Internal Mechanism - High-strength steel components End Cap - Impact-resistant ABS polymer Mounting Plate - Steel Strike Plate - Stainless Steel
  • Latch : Stainless Steel, 3/4" Deadlocking Pullman-type Latch Bolt
  • Strike Plate : 99 surface strike
  • Download(s): Click to view V40_Series_Catalog.pdf
See full product details
Original price $ 481.46 - Original price $ 481.46
Original price
$ 481.46
$ 481.46 - $ 481.46
Current price $ 481.46
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 2 business weeks.

Only 0 Detex Heavy Duty 36" Alarmed Rim Exit Device | V40 Value Series | US28 are available.

variantStock[42509963264089] = 0;
Original price $ 481.46 - Original price $ 481.46
Original price
SubTotal : $ 481.46
$ 481.46 - $ 481.46
Current price SubTotal : $ 481.46

Description

The Detex V40 Series 36" Alarmed Rim Exit Device in US28 Satin Aluminum finish offers a powerful combination of life safety compliance and exit security. Engineered for durability and reliability, this Grade 1 panic device features a built-in battery-powered alarm that sounds upon unauthorized exit—making it an ideal solution for retail, commercial, institutional, and industrial applications.

Designed to install on aluminum, wood, hollow metal, or composite doors, the V40 alarmed device uses a surface strike for fast and straightforward installation. It fits standard 36" wide doors and features a non-handed, field-reversible design for flexible use. With optional lever trim compatibility, this unit supports exterior access when required.

Tested to ANSI/BHMA A156.3 standards and UL Listed for panic and fire-rated doors, the V40 delivers trusted performance backed by Detex quality.

Key Features:

  • Built-in battery-powered alarm to deter unauthorized exit

  • Durable Grade 1 panic hardware designed for heavy-duty use

  • Fits 36" doors with a field-reversible, non-handed design

  • Satin aluminum (US28 / 628) finish blends with modern interiors

  • Compatible with wood, hollow metal, aluminum, and composite doors

  • Surface-mounted strike for secure and fast installation

  • ADA compliant, UL Listed, and ANSI/BHMA certified

  • Accepts optional lever trims for exterior access functionality

  • Designed for interior use (not weatherproof)

Specifications:

  • Access Type: Alarmed Exit

  • Door Types: Aluminum, wood, hollow metal, composite

  • Power: Battery operated alarm (no external wiring required)

  • Finish Code: 628 – Satin Aluminum

  • Grade: ANSI/BHMA Grade 1

  • Certifications: A156.3, ADA, UL Listed

  • Handing: Field reversible

  • Series: Value Series V40

  • Electrical Option: Battery-powered alarm module

  • Weather Resistance: Not weatherproof (interior use recommended)

The Detex V40 Series Alarmed Rim Exit Device delivers peace of mind with dependable performance, fast installation, and built-in security—making it the trusted choice for protecting exit points in commercial spaces.

Detex Heavy Duty 36" Alarmed Rim Exit Device | V40 Value Series | US28 Specifications

  • Weight : 33.07 lb
  • Dogging : CD - Cylinder Dogging
  • Materials : Chassis & Push Bar - Extruded Aluminum Latch Bolt - Stainless Steel Internal Mechanism - High-strength steel components End Cap - Impact-resistant ABS polymer Mounting Plate - Steel Strike Plate - Stainless Steel
  • Latch : Stainless Steel, 3/4" Deadlocking Pullman-type Latch Bolt
  • Strike Plate : 99 surface strike
  • Grade : Grade 1
  • Standards : A156.3, ADA, ANSI, BHMA, UL Listed
  • Warranty : 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Handing : Field Reversible, Right Handed Reverse
  • Door Fitting : 1-3/4” - 2-1/4” thick standard, 3-1/2” min. Single Door Stile, 4” min. Pairs of Doors Stile, 2” Narrow Stile Door
  • Alternative Part Number(s) : V40-628-48, V4062848
  • Condition : New
  • Function : Exit Only
  • Length : 36"
  • Finish : US28
  • Download(s): Click to view V40_Series_Catalog.pdf
