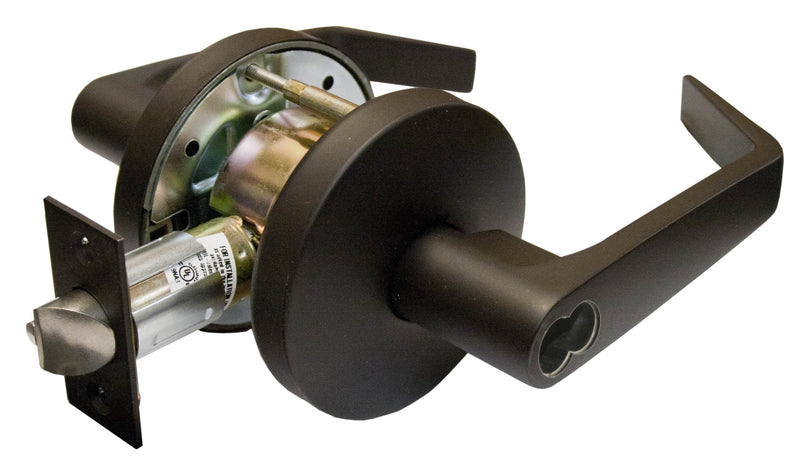

Advantage -Grade 1- SFIC- Storeroom Lever US10B

Write A Reviews
  • Vendor : PHG
  • SKU : EZ3K6040
  • Weight : 5.33 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
See full product details
Original price $ 123.64 - Original price $ 123.64
Original price
$ 123.64
$ 123.64 - $ 123.64
Current price $ 123.64
In Stock
Original price $ 123.64 - Original price $ 123.64
Original price
SubTotal : $ 123.64
$ 123.64 - $ 123.64
Current price SubTotal : $ 123.64

Description

Features:

  • ANSI Grade 1
  • ADA compliant ANSI A117.1 Barrier Free Accessibility
  • UL 3 hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated
  • CALIFORNIA STATE REFERENCE CODE
    Formerly Title 19,California State Fire Marshal (CSFM) levers return to within 1/2” of door face
  • Independent torsion springs
  • Fast and easy installation
  • Clutch function standard
  • Removable through bolt
  • Panic proof (inside always free)
  • Concealed Mounting Screws
  • Lifetime Mechanical Warranty

Specifications:

  • Door Fitting: 1-3/8” ~ 2” door thick. Factory preset at 1-3/4”. Thru-Bolt CTC: 2-3/4”.
  • Exposed Trim: Wrought brass. Pressure cast zinc lever.
  • Lock Chassis: Heavy gauge dichromated steel. Zinc dichromated for corrosion resistance.
  • Cylinder: SFIC compatible with BEST profile 6-pins and 7-pins
  • Latch: 2 3/4" Backset: 1/2” throw, 7/8” dia. stainless steel latch bolt. 1-1/8” x 2-1/4” faceplate. Floating latch design fits both flat or beveled doors 1/8” in 2”.
  • Strike: ASA strike standard
  • Handing" Universal, non-handing.
  • Screws: Combination screws for both metal and wood doors.

Availability-7 days
Availability-3 days

Advantage -Grade 1- SFIC- Storeroom Lever US10B Specifications

  • Weight : 5.33 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Thru Bolt : Yes, Removeable
  • Warranty : Lifetime Mechanical Warranty
  • Cross Bore : 2-1/8"
  • Edge Bore : 1"
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Not Included, use any SFIC 6 or 7 pin core
  • Alternative Part Number(s) : 504FK-CT-US10B
  • Condition : New
  • Function : Storeroom
  • Finish : US10B
