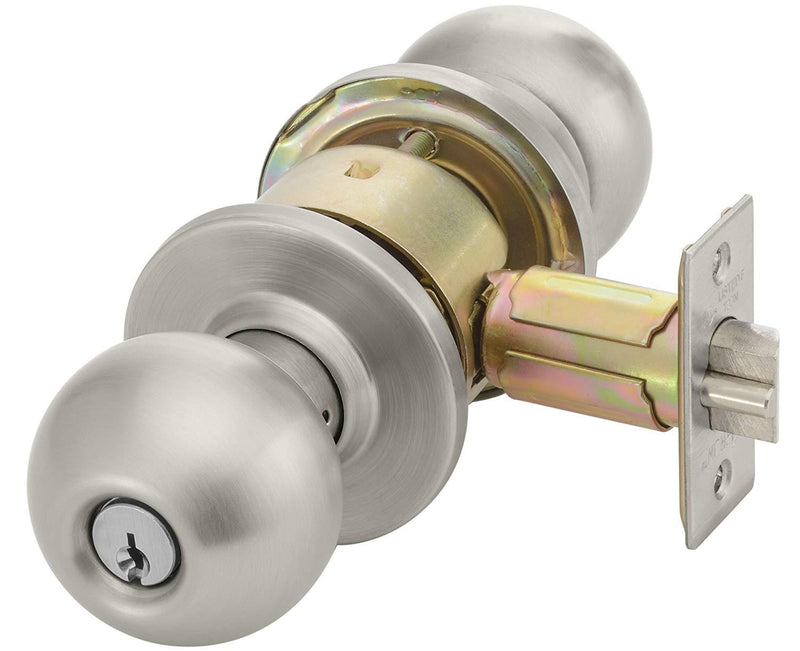

Commercial Knob Entry Grade 2 US32D 2 3/4" Latch

Write A Reviews
  • Vendor : PHG
  • SKU : EZ333002
  • Weight : 3.4 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
See full product details
Original price $ 35.73 - Original price $ 35.73
Original price
$ 35.73
$ 35.73 - $ 35.73
Current price $ 35.73
In Stock

Only 15 Commercial Knob Entry Grade 2 US32D 2 3/4" Latch are available.

variantStock[39328017735] = 15;
Original price $ 35.73 - Original price $ 35.73
Original price
SubTotal : $ 35.73
$ 35.73 - $ 35.73
Current price SubTotal : $ 35.73

Description

Commercial Knob Entry Grade 2 US32D

This lock comes with a 2 3/4" Latch, if you need a 2 3/8" Latch you can order it here

Features

  • SC4 6-pin Standard
  • Concealed Mounting Screws
  • 1 Piece Bulging High Security Knob
  • Fast and Easy Installation
  • Panic Proof (inside always free)
  • ANSI GRADE 2
  • ANSI/BHMA A156.2-2003
  • Series 4000, Grade 2
  • Exceeds 400,000 cycles
  • 3 hours Fire rating
  • UL10C/UBC 7-2(1997)
  • Positive Pressure Rated

Specifications

  • Door Fitting 1-3/8” ~ 1-3/4” door thick. 2” door thick optional.
  • Exposed Trim Wrought brass or stainless steel.
  • Lock Chassis Heavy gauge dichromated steel.
  • Cylinder Solid brass SC4 6-pin standard.
  • Latch 1/2” throw stainless steel latch bolt.
  • 2-3/4” backset-1-1/8” x 2-1/4” faceplate mortise latch or 2-3/8” backset-1” x 2-1/4” faceplate mortise latch.
  • Drive-in latch available.
  • Strike T-Strike standard (9106).
  • Screws Combination screws for both metal and wood doors.
  • Keys 2 brass keys per set.

Availability-7 days

Commercial Knob Entry Grade 2 US32D 2 3/4" Latch Specifications

  • Weight : 3.4 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 2 (Medium Duty)
  • Standards : ANSI Grade 2 ANSI/BHMA A156.2-2011 UL Listed 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Keys : 2
  • Thru Bolt : Yes
  • Warranty : Lifetime Mechanical Warranty
  • Cross Bore : 2-1/8"
  • Edge Bore : 1"
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Solid brass SC4 6-pin You can replace the cylinder with any K001 Cylinder
  • Clutch Function : Yes
  • Alternative Part Number(s) : 100EA-BA-US32D
  • Condition : New
  • Function : Entrance
  • Finish : US32D
