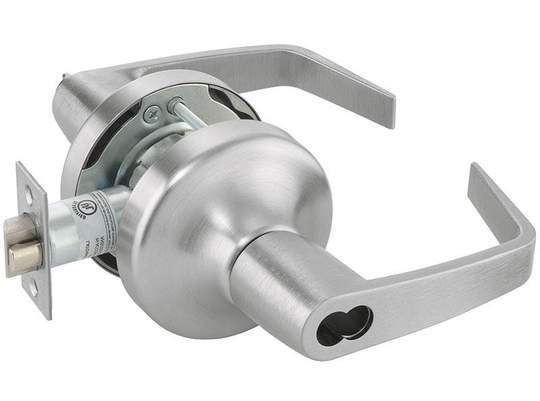

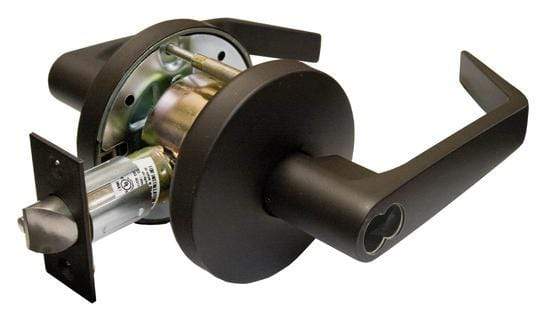

Advantage FK Series | Grade 1 LFIC Classroom Lever

Write A Reviews
  • Vendor : PHG
  • SKU : PHG-509FK-CT-US26D-ICS
  • Weight : 4.0 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
See full product details
Original price $ 125.83 - Original price $ 132.81
Original price
$ 125.83
$ 125.83 - $ 132.81
Current price $ 125.83
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 5 business days.
Color: US26D

Only 0 Advantage FK Series | Grade 1 LFIC Classroom Lever are available.

variantStock[31627933745241] = 0; variantStock[31627933778009] = 2;
Original price $ 125.83 - Original price $ 132.81
Original price
SubTotal : $ 125.83
$ 125.83 - $ 132.81
Current price SubTotal : $ 125.83

Description

Advantage FK Series | Grade 1 LFIC Classroom Lever

  • Schlage profile LFIC Cylinder Housing

Features

  • Independent torsion springs
  • Fast and easy installation
  • Clutch function standard
  • Removable through bolt
  • Panic proof (inside always free)
  • Concealed Mounting Screws

Specifications:

  • Door Fitting: 1-3/8″ ~ 2″ door thick. Factory preset at 1-3/4″. Thru-bolt CTC: 2-3/4″
  • Exposed Trim: Wrought brass. Pressure cast zinc lever
  • Lock Chassis: Heavy gauge dichromate steel. Zinc dichromate for corrosion resistance
  • Latch: UL listed, 1/2″ throw, 7/8″ dia. stainless steel latch bolt - faceplate 1-1/8″ X 2-1/4″ Floating latch design fits both flat or beveled doors 1/8″ in 2″
  • Strike: ASA strike standard (9109). T-Strike optional (9106)
  • Handing: Universal, non-handing
  • Screws: Combination screws for both metal and wood doors.

Availability-7 days

Advantage FK Series | Grade 1 LFIC Classroom Lever Specifications

  • Weight : 4.0 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Thru Bolt : Yes, Removeable
  • Warranty : Lifetime Mechanical Warranty
  • Cross Bore : 2-1/8"
  • Edge Bore : 1"
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Not Included, use any Schlage Type LFIC Core
  • Alternative Part Number(s) : 509FK-CT
  • Condition : New
  • Function : Classroom
  • Finish : US26D
