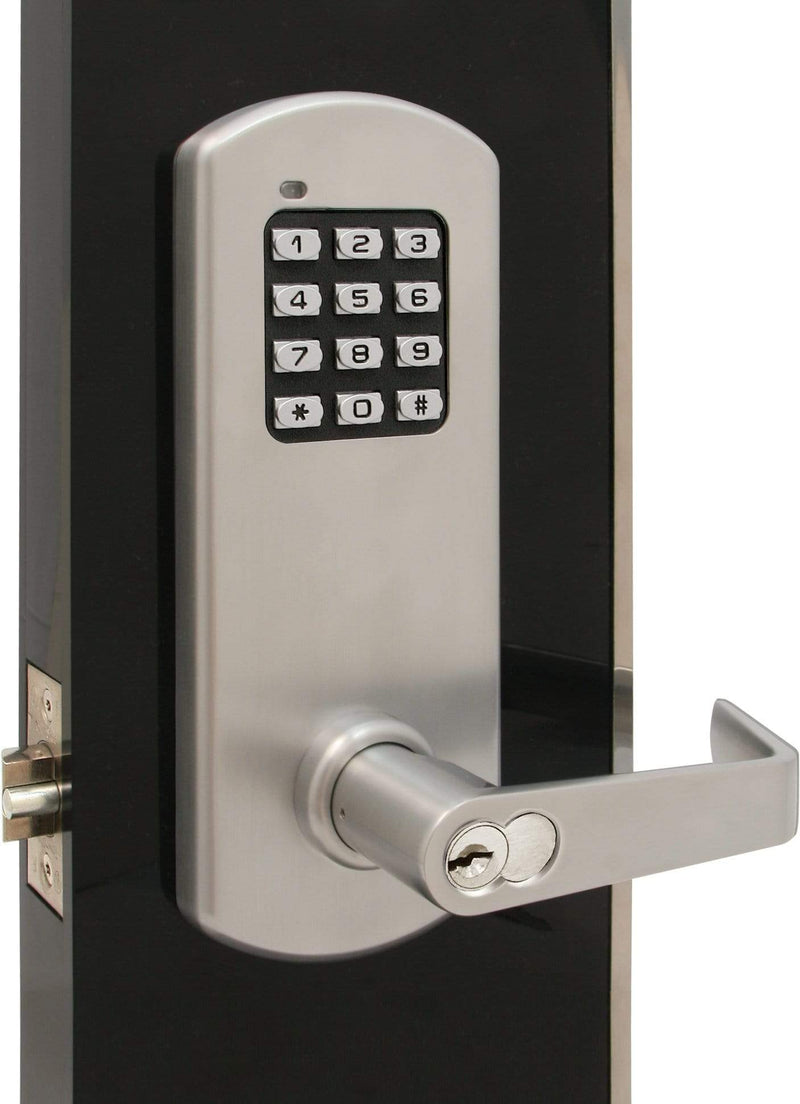

TownSteel XCE Series Grade 1 Push Button Electronic Lock SFIC -26D
Heavy‑Duty TownSteel Electronic Lock for Commercial Security
The TownSteel XCE Series Grade 1 Push Button Electronic Lock is a premium access control solution designed for high‑traffic commercial environments. Manufactured by TownSteel Inc, this lock combines rugged construction, reliable electronics, and SFIC compatibility to deliver professional‑grade security with convenience. Finished in sleek 26D satin chrome, it blends durability with a modern appearance suitable for offices, healthcare facilities, schools, and government buildings.
This push button electronic lock eliminates the need for traditional keys while still supporting Small Format Interchangeable Core (SFIC) systems, making it an excellent choice for facilities already using TownSteel locks or TownSteel hardware across multiple access points.
Programming Features
- 1 Master Code, 90 User Codes,10 Manager Codes, 5 Service Codes
- Powered with 4 AA Alkaline batteries, up to 2 years battery life
- -31° to 151° F (-35° to 66°C) Operating Temperature
Mechanical Specifications
- Door Thickness: 1-3/4”
- Backset: 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½”throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- Small format IC (SFIC) 6 or 7 pin - Core not included
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for the finish
- 9-year limited for mechanical
Downloads
FAQs
What makes TownSteel XCE push button electronic locks reliable for commercial use?
The TownSteel XCE Series is Grade 1 certified, designed for high-traffic areas, and built using premium TownSteel hardware for durability, making it one of the most reliable TownSteel electronic locks available.
What types of facilities are ideal for TownSteel XCE electronic locks?
These TownSteel electronic locks are perfect for schools, offices, healthcare facilities, and commercial buildings requiring reliable, high-security TownSteel hardware solutions with keyless access.
Does the TownSteel XCE lock require a key?
No, this push button electronic lock eliminates the need for traditional keys, offering secure keyless access while retaining the quality and dependability associated with TownSteel hardware.
Are replacement parts available for TownSteel electronic locks?
Yes, TownSteel Inc provides replacement components and accessories, ensuring the XCE Series continues to function reliably over time, reflecting the brand’s commitment to quality TownSteel locks.
How secure is the TownSteel XCE Series push button electronic lock?
The XCE Series is Grade 1 certified and built with robust TownSteel hardware, offering exceptional resistance to tampering, making it one of the most secure TownSteel electronic locks for commercial use.
Specifications
SKU#: TSL-XCE-2020S-SFIC-26D
weight: 1.0 lb
