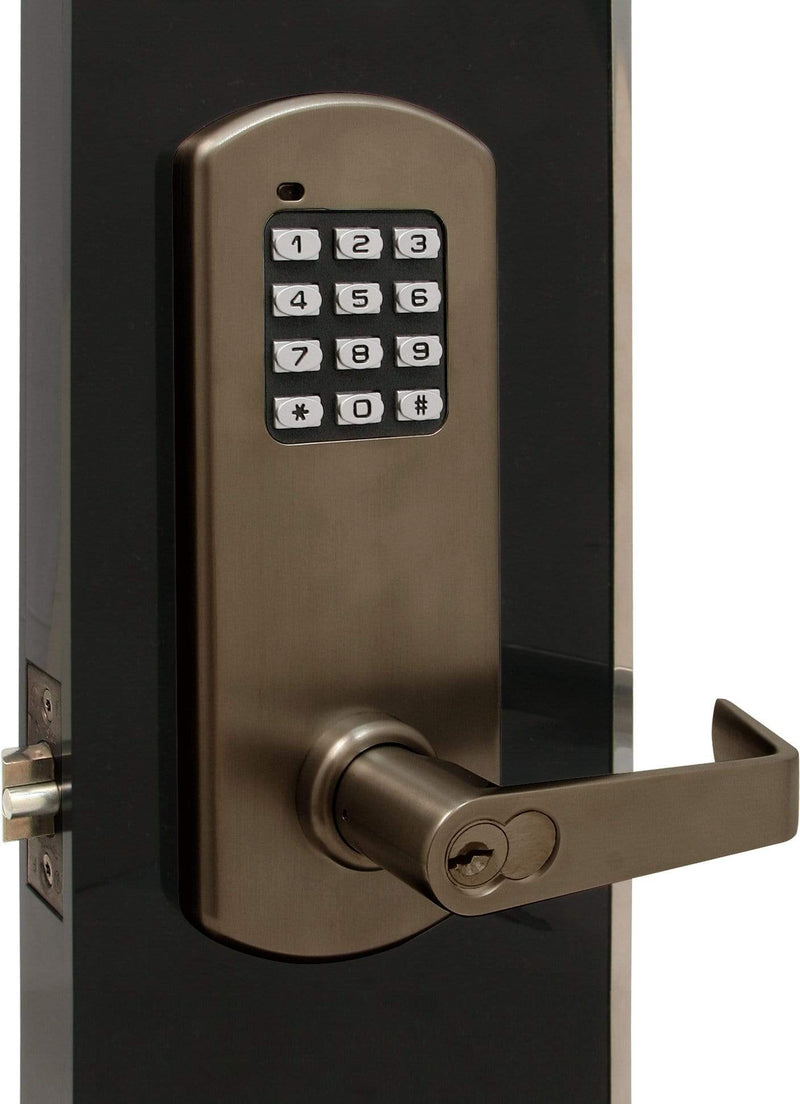

TownSteel XCE Series Grade 1 Push Button Electronic Lock SFIC -10B
SKU TSL-XCE-2020S-SFIC-10B
Original price
$ 585.12
-
Original price
$ 585.12
Original price
$ 585.12
$ 585.12
-
$ 585.12
Current price
$ 585.12
Availability:
In stock
TownSteel XCE Series Grade 1 Push Button Electronic Lock -10B
Programming Features
- 1 Master Code, 90 User Codes,10 Manager Codes, 5 Service Codes
- Powered with 4 AA Alkaline batteries, up to 2 years battery life
- -31° to 151° F (-35° to 66°C) Operating Temperature
Mechanical Specifications
- Door Thickness: 1-3/4”
- Backset: 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½”throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- Small format IC (SFIC) 6 or 7 pin - Core not included
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for the finish
- 9-year limited for mechanical
Downloads
* This is a made to order, and ships in 3 weeks.
Specifications
SKU#: TSL-XCE-2020S-SFIC-10B
weight: 1.0 lb
