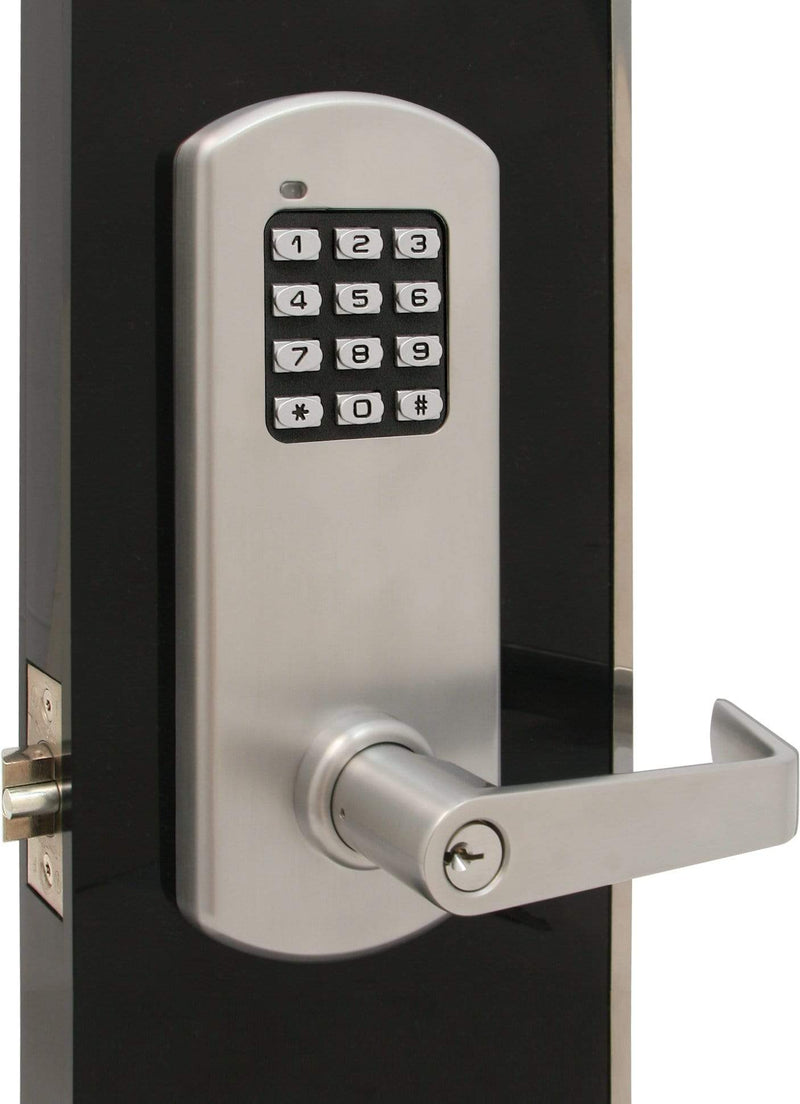

TownSteel XCE Series Grade 1 Push Button Electronic Lock -26D
Programming Features
- 1 Master Code, 90 User Codes,10 Manager Codes, 5 Service Codes
- Powered with 4 AA Alkaline batteries, up to 2 years battery life
- -31° to 151° F (-35° to 66°C) Operating Temperature
Mechanical Specifications
- Door Thickness: 1-3/4”
- Backset: 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½”throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- SC4 Key, 6 pin Schlage C keyway
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for the finish
- 9-year limited for mechanical
