TownSteel RFID Card
TownSteel RFID Card
For use with all TownSteel 5000 series locks. Including E-Elite, E-Smart, and E-Genius
These cards are not only convenient for the end user but are SUPER easy to program in to TownSteel Locks.
TownSteel 5000 Series RFID Key Fob / Keycard Programming
Add an RFID Keycard or Key Fob
-
Press
*, then#. - The lock will emit an audible beep.
-
Enter the Programming Code, then press
#. - The lock will beep again, and the green LED will flash.
-
Enter the user slot number where you want to store the keycard or key fob.
-
Example: To program the card into User 2, press
2.
-
Example: To program the card into User 2, press
- The lock will beep again.

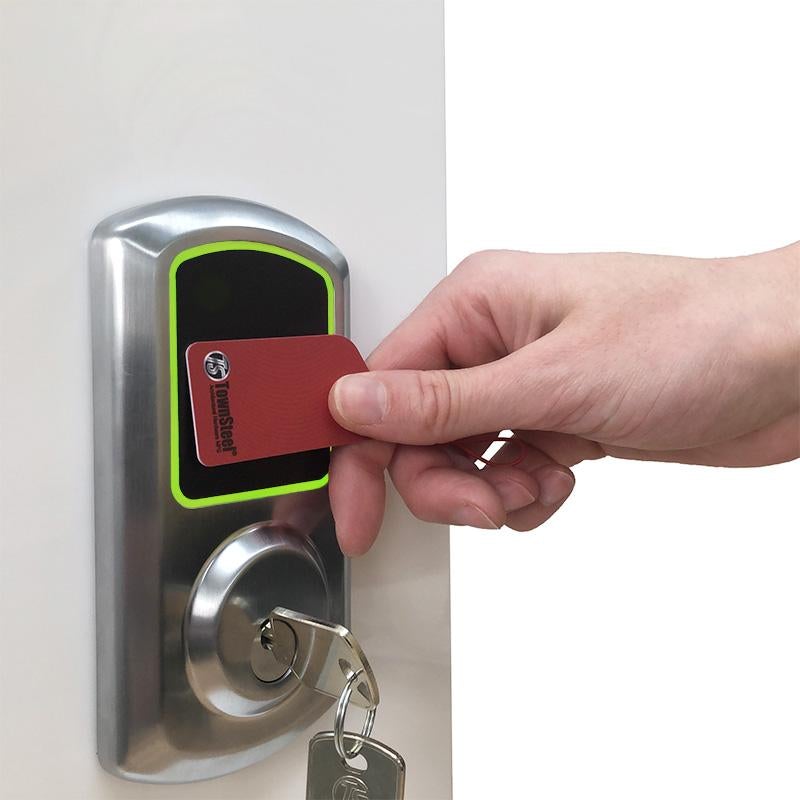

- Hold or tap the RFID keycard or key fob against the keypad.
- When programming is successful, the lock will beep once more and the green LED will flash.
Notes
- RFID keycards and key fobs are programmed into the same user slots as user codes and can be used interchangeably.
- Multiple RFID keycards or key fobs can be programmed during the same programming session by selecting another user slot and repeating Steps 5–8.
- The same RFID keycard or key fob cannot be programmed to the lock more than once.
-
To exit programming mode, press
*or wait approximately 12 seconds for the lock to return to Idle Mode.
Specifications
SKU#: TSL-MIFARE1 S50-TS
weight: 0.13 lb
