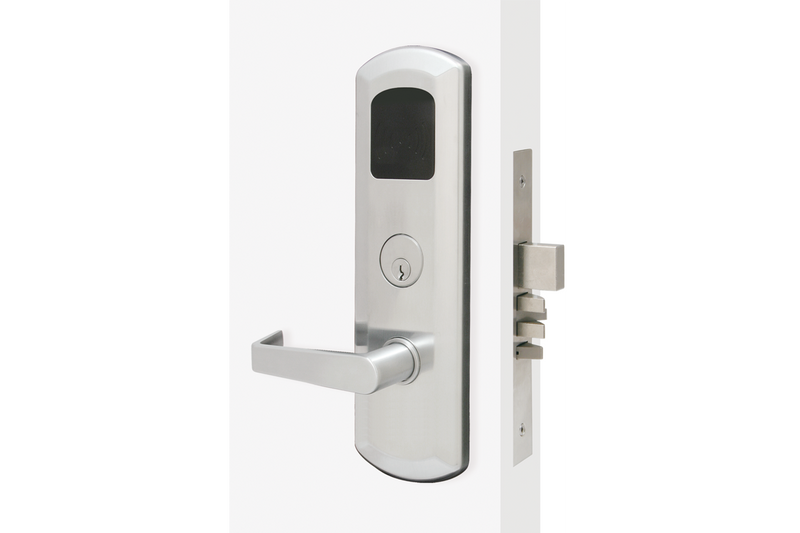

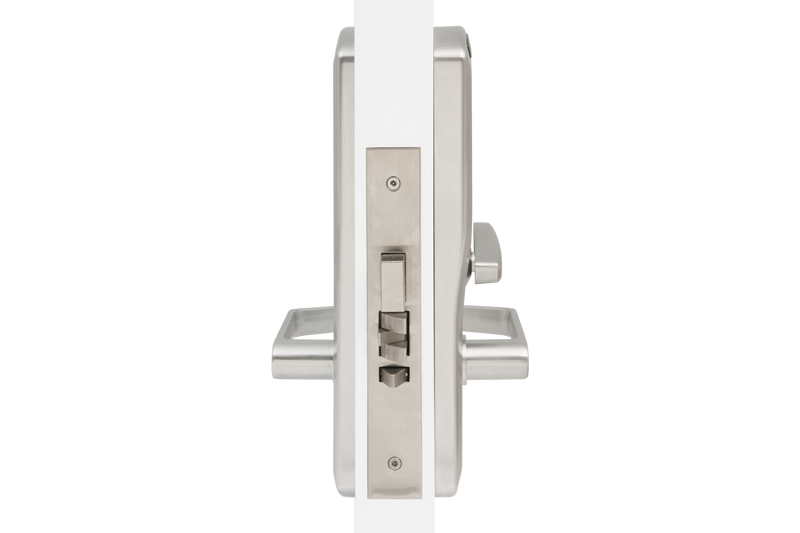

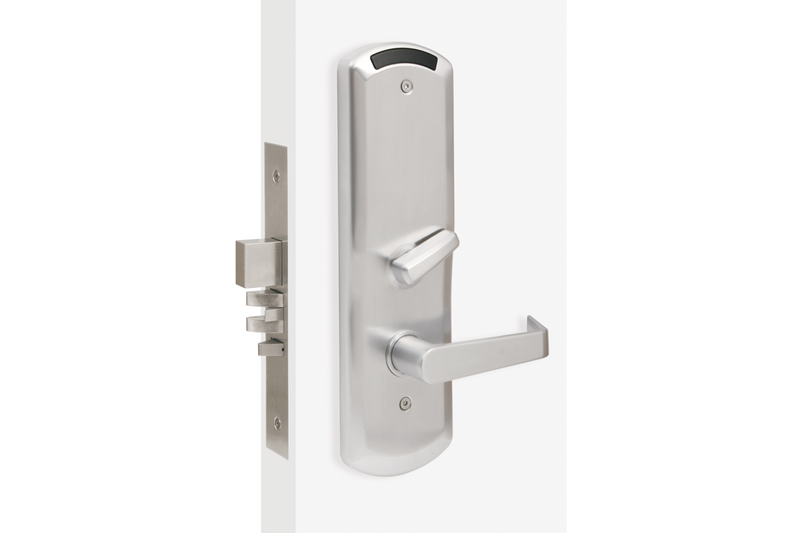

TownSteel E-Kontos 1B 5000 Series Grade 1 Electronic Mortise Lockset RF(WIFI) -Satin Chrome
The TownSteel E-Genius grade 1 electronic locks, specifically the E-Kontos 1B 5000-RF (Wi-Fi) model, include a touch keypad and a Schlage C keyway cylinder. To utilize the online/WIFI capabilities, this mortise lock must be paired with the separately sold WIFI Gateway. This electronic lockset offers a unique and premium design, making it a great fit for rental properties, homes, hospitals, and offices.
NOTE: Need to pair with Gateway RF to go online. Gateway for RF sold separately.
Features
- Illuminated 12-pin touchpad
- Escutcheon design
- Bluetooth – TSE Home App compatible
- 400 user codes
- Interchangeable RFID keycards/stickers
- Certifications: ANSI/BHMA Grade 1, UL Listed
Specifications
- e-Kontos Series:
- 1B: With cylinder (SC4)
- Model: 5000-RF: Touchpad, RFID, WiFi
- Mortise chassis: Clutched
-
Product Type :Access Control (Stand Alone)
Compliance: UL 10C Compliant
- BHMA/ANSI Grade: Grade 1 Certified, ANSI/BHMA A156.13
- Lockbody: Clutched
- Handings: Field Reversible
- Door Thickness: 1-3/4" standard
- Backset: 2-3/4"
- Strike: ANSI strike, plated\stainless steel
Warranty
- 1-year limited for electronic
- 4-year limited for finish
- 9-year limited for mechanical
Downloads
Specifications
SKU#: TSL-EKO1B5RX-SRH626-SC
weight: 1.0 lb
Download(s):
Vendor: TownSteel Inc
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition:
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function:
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery: 4x AA batteries
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway: SC1, SC4
