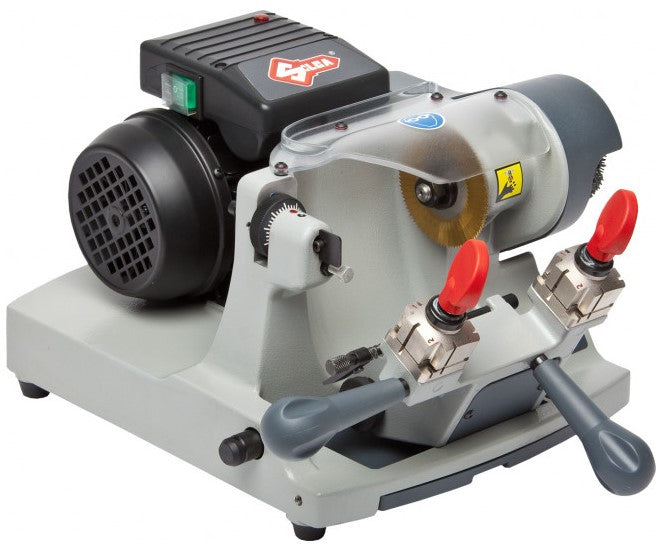

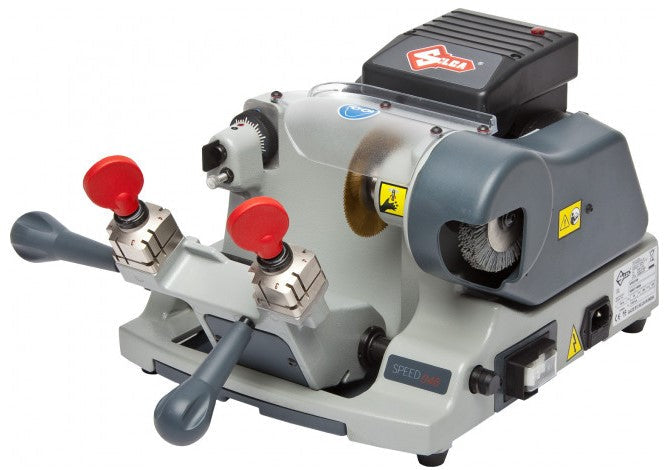

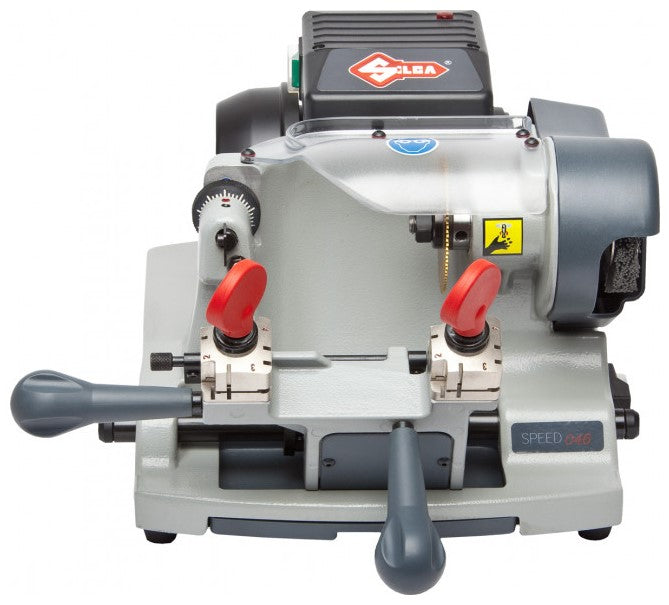

Ilco 046 Speed Manual Key Machine 110V
The Speed 046 is a mechanical key cutting machine for duplicating flat-style keys.
All the same features as the Speed 045 only this model is designed specifically for cutting safety deposit keys and other similar flat style keys (locker and corrugated padlock keys).
The Speed 046 is designed to duplicate flat-type keys (Safe and Safe Deposit type) and includes features that any user will readily appreciate. The modern, open style, safety details, and operational features make this model a choice model for store or shop and with the included mounting bracket; it is also an excellent choice for mobile use.
- Four-sided, nickel-plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
- Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two year warranty
- Power Supply: 120V-60Hz
- Maximum absorbed power: 2.8 Amp, 200 Watt
- Cutter motor: single phase and speed
- Movements: by ball joint on rectified carriage
- Tool Speed: 1350 rpm
- Carriage Runs: 1.65" (42mm)
- Dimensions: 15.75" Wide 18.1" Depth 9.8" High
- Weight: 31lbs (14kg)
