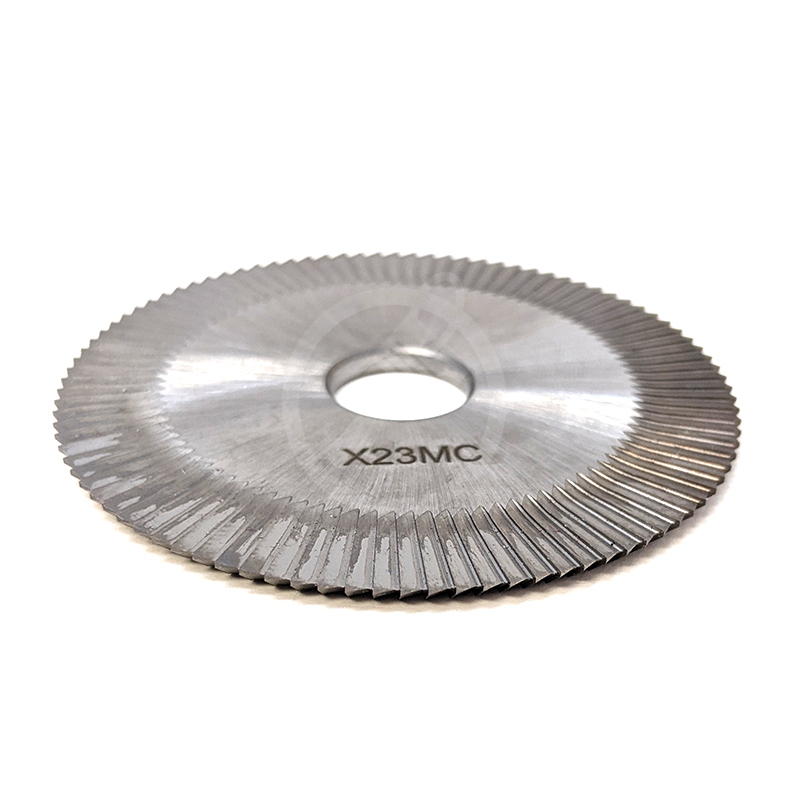

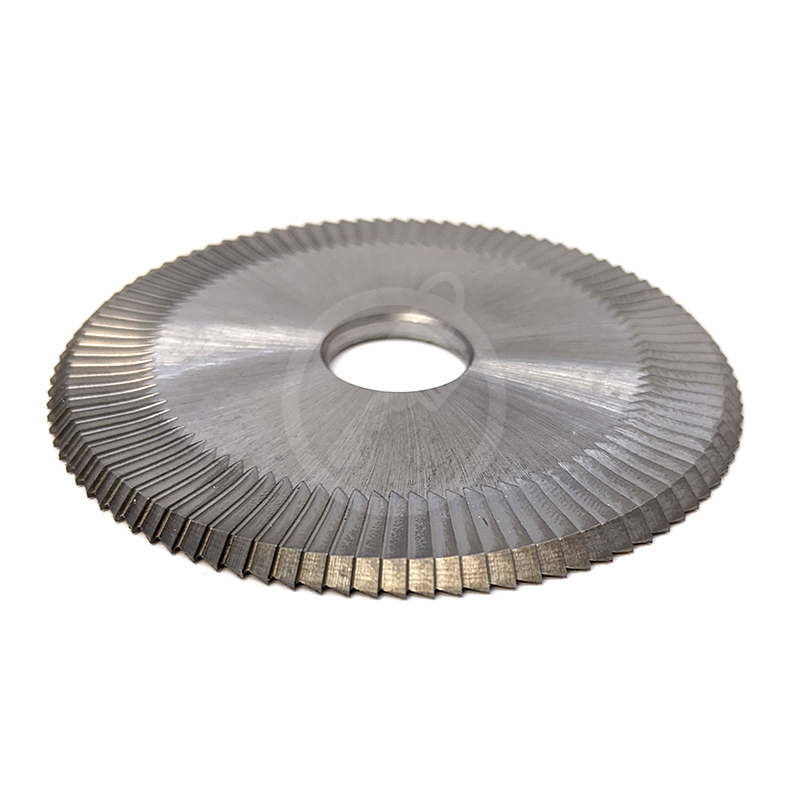

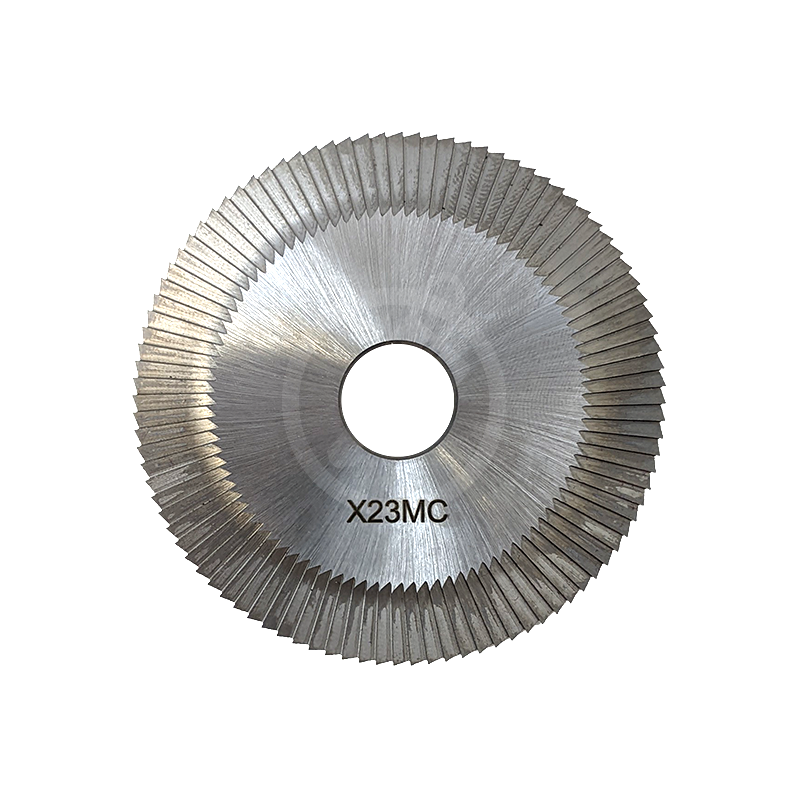

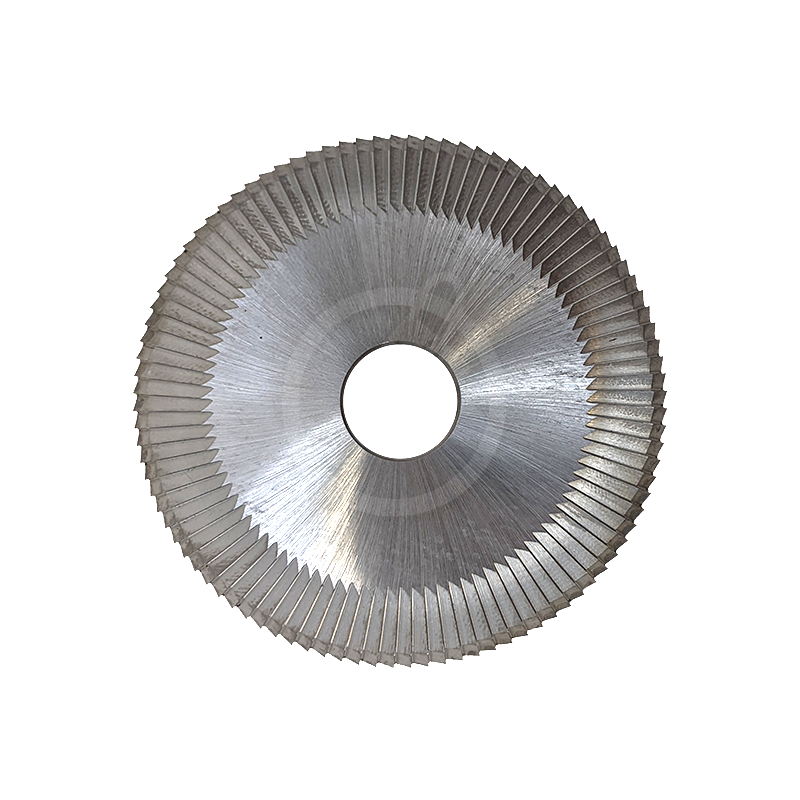

Key Machine Cutter Wheel ( X23MC, CW23MC )
Key Machine Cutter Wheel ( X23MC )
Various Part Numbers for this Cutter
- HPC: CW23MC
- Ilco: X23MC, BC0049XXXX
- Taylor: CU12
- Jet: X23MC
Cutter Dimensions:
- Overall Diameter: 2.37"
- Thickness: 0.105"
- Center Hole Diameter: 0.49"
Works with the following:
Ilco Silca-023
Ilco Silca-025
Ilco Silca-045
Ilco Silca-045HD
Taylor-143MT
Taylor-145
Taylor-145MT
HPC-9160MC
HPC-9170MC
HPC-9180MC
Cole-3K
Cole-200
FAQs
What is a key cutter wheel?
A key cutter wheel is a circular cutting blade used in key duplicating machines to shape and mill the grooves, notches, and edges of a key blank so it matches the original key.
What material is the X23MC cutter wheel made of?
The X23MC cutter wheel is made from high-speed steel (HSS), which provides durability, precision, and resistance to wear during repeated key cutting.
Specifications
SKU#: ASP-X23MC
weight: 0.37 lb
Download(s):
Vendor: ASP
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition:
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function:
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Compatible With
Ilco Silca-023
Ilco Silca-025
Ilco Silca-045
Ilco Silca-045HD
Taylor-143MT
Taylor-145
Taylor-145MT
HPC-9160MC
HPC-9170MC
HPC-9180MC
Cole-3K
Cole-200
