Description

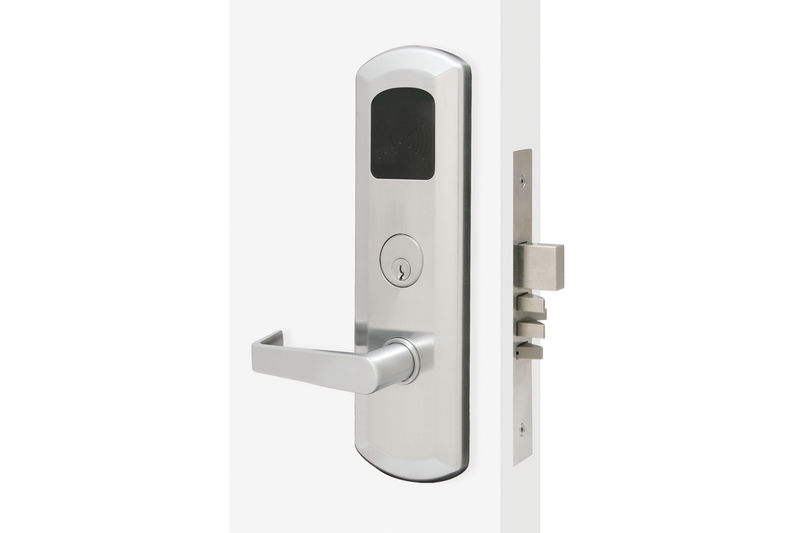

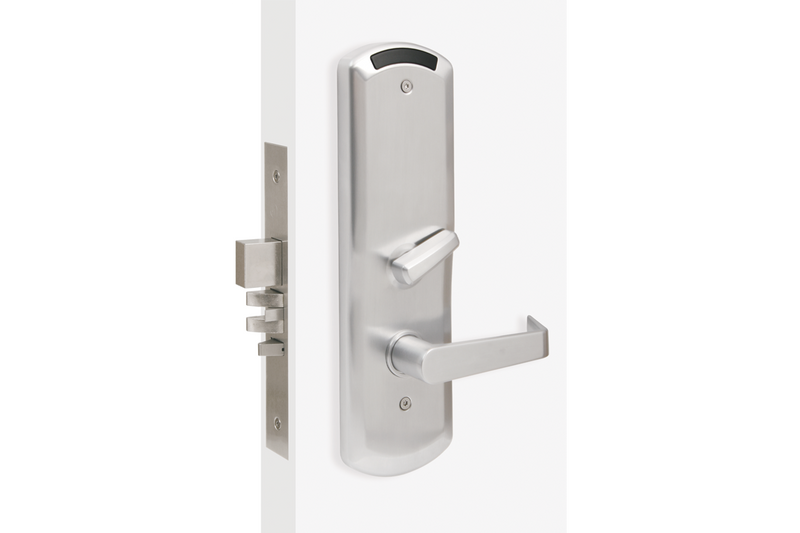

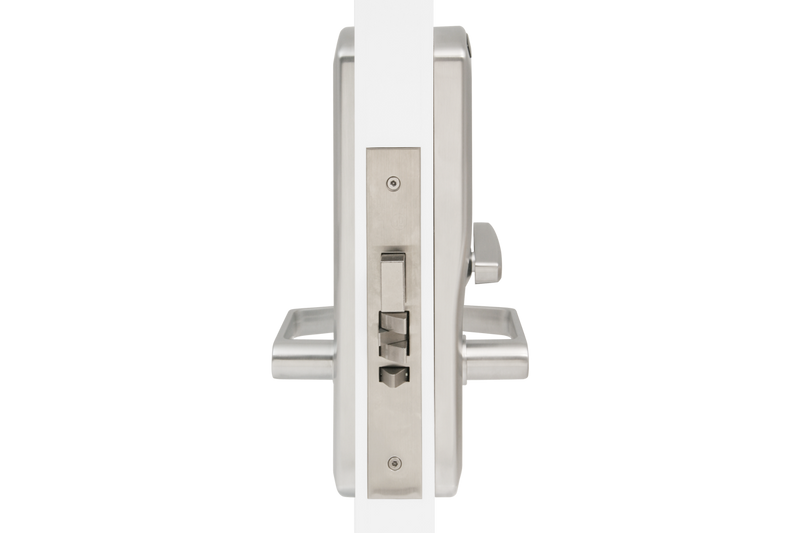

The TownSteel E-Genius grade 1 electronic locks, specifically the E-Kontos 1B 5000-RF (Wi-Fi) model, include a touch keypad and a Schlage C keyway cylinder. To utilize the online/WIFI capabilities, this mortise lock must be paired with the separately sold WIFI Gateway. This electronic lockset offers a unique and premium design, making it a great fit for rental properties, homes, hospitals, and offices.

NOTE: Need to pair with Gateway RF to go online. Gateway for RF sold separately.

Features

• Illuminated 12-pin touchpad
• Escutcheon design
• Bluetooth – TSE Home App compatible
• 400 user codes
• Interchangeable RFID keycards/stickers
• Certifications: ANSI/BHMA Grade 1, UL Listed

Specifications

• e-Kontos Series:
• 1B: With cylinder (SC4)
• Model: 5000-RF: Touchpad, RFID, WiFi
• Mortise chassis: Clutched
• Product Type :Access Control (Stand Alone)

  Compliance: UL 10C Compliant

• BHMA/ANSI Grade: Grade 1 Certified, ANSI/BHMA A156.13
• Lockbody: Clutched
• Handings: Field Reversible
• Door Thickness: 1-3/4" standard
• Backset: 2-3/4"
• Strike: ANSI strike, plated\stainless steel

• 2-year limited for electronic
• 5-year limited for finish
• 10-year limited for mechanical

Downloads

• TownSteel E-Kontos 1B 5000 Series Template
