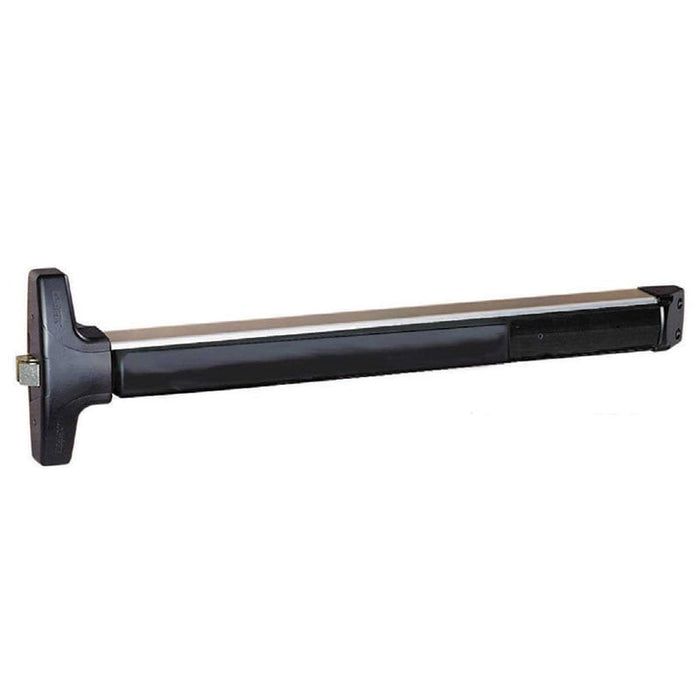

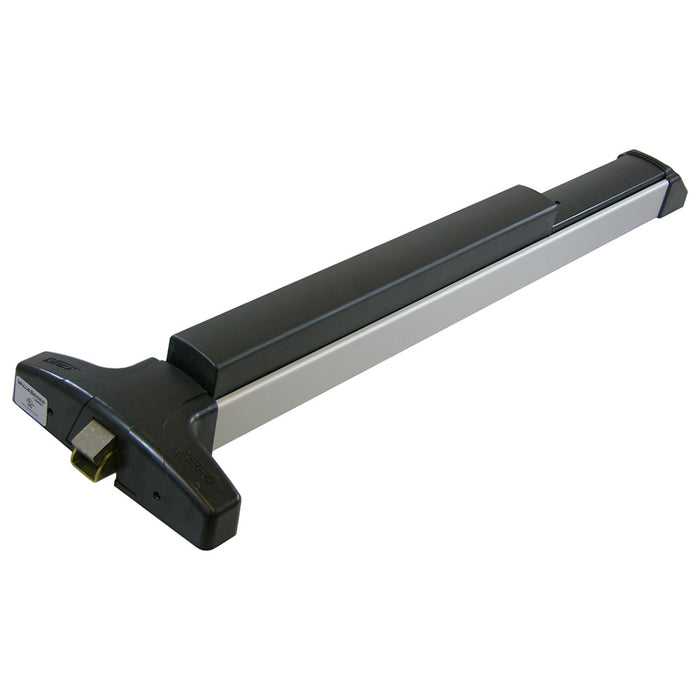

Detex Heavy Duty 48" Rim Exit Device | V40 Value Series | US28

Description

The Detex V40 Series Rim Exit Device offers secure, code-compliant panic and fire exit hardware designed for commercial applications where durability, easy installation, and affordability are critical. Ideal for single and double doors with mullions, this heavy-duty rim device is the go-to solution for loss prevention and life safety requirements.

Equipped with Detex’s patented mounting plate and strike locator system, the V40 allows for the fastest and most accurate installation in the industry—no paper templates required. The non-handed design, field sizeable rail, and minimal door prep streamline installation, saving valuable time on-site.

Made from high-strength components, including a heavy-duty ribbed aluminum extrusion, stainless steel ¾" deadlocking Pullman-type latch bolt, and high-impact anodized ABS surfaces, the V40 withstands over 1,400 lbs. of static pull force. It is designed to meet the needs of wide stile (4” or greater) and flush doors, while the optional V40xNS model accommodates 2" narrow stile doors with a lower-profile strike.

Key Features:

• Affordable, high-performance panic hardware for commercial use

• Patented mounting plate and strike locator for quick and accurate installation

• Minimal door prep saves labor time and installation cost

• Field sizeable and non-handed for flexible door configurations

• ¾" stainless steel Pullman-type latch bolt with deadlocking function

• Durable anodized aluminum rail with high-impact ABS components

• Angled end cap minimizes damage from heavy use


• Accepts a wide range of outside trims and functions


• Resists over 1,400 lbs. of static pull force for maximum security


Specifications:

• Door Types: Wood, hollow metal, fiberglass, or aluminum

• Door Thickness: Fits 1-3/4" to 2-1/4" thick doors

• Single Door: Fits 3-1/2” minimum stile with 99 surface strike


Built for performance, value, and long-lasting durability, the V40 Series sets the standard for affordable, professional-grade rim exit devices.
