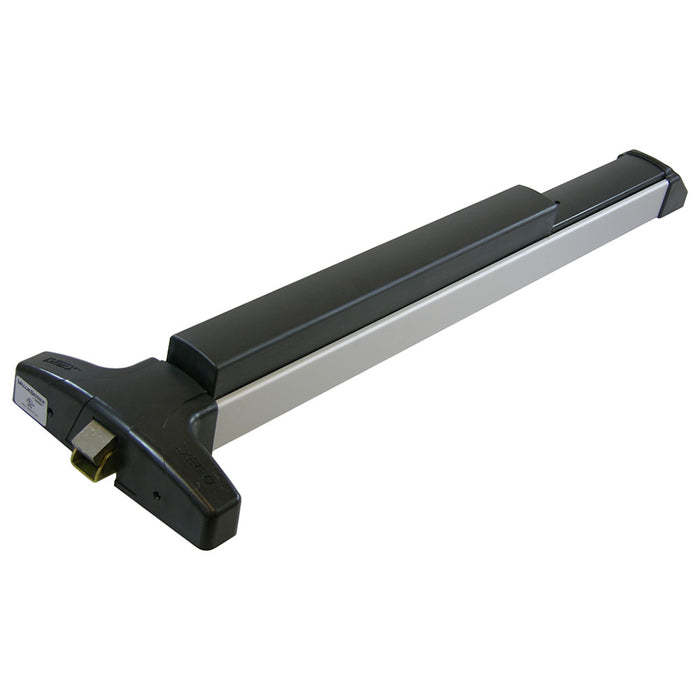

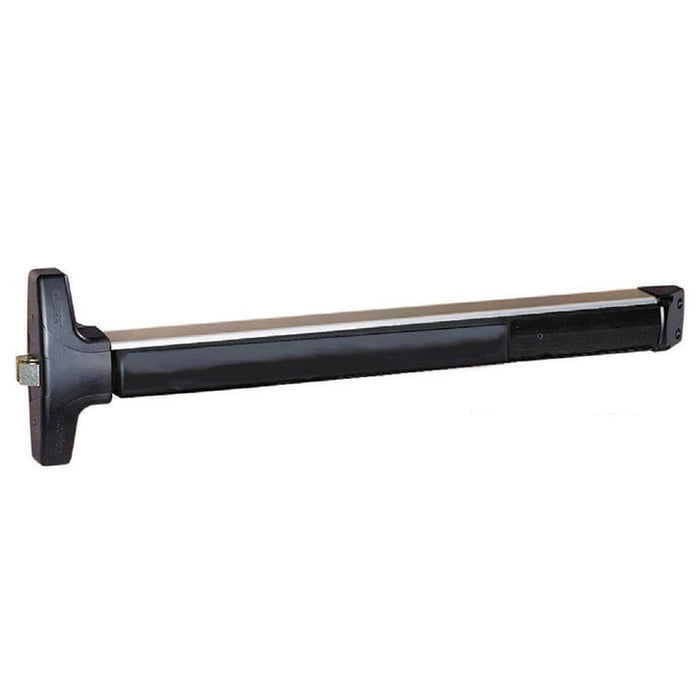

Detex Heavy Duty 36" Rim Exit Device | V40 Value Series | US28

Description

The Detex V40 Series Heavy Duty Rim Exit Device in US28 finish delivers top-tier performance, security, and durability at an economical price. Designed for panic and fire exit applications, this device is ideal for use on single and double doors with mullions and fits seamlessly into commercial, industrial, and institutional settings.

Engineered with Detex’s patented mounting plate and strike locator system, the V40 significantly simplifies installation—eliminating the need for paper templates and reducing door prep. Its rugged construction includes a heavy-duty ribbed aluminum rail, a stainless steel ¾” deadlocking Pullman-type latch bolt, and high-impact anodized and ABS surfaces capable of withstanding over 1,400 pounds of static pull force.

Field sizeable and non-handed, the V40 easily adapts to a wide variety of doors—including wood, hollow metal, fiberglass, and aluminum. It fits door thicknesses from 1-3/4” to 2-1/4” and covers a standard 161 door prep.

Key Features:

• Engineered for panic and fire exit doors

• Best-in-class value for heavy-duty loss prevention hardware

• Patented mounting plate and strike locator for fast, accurate installation


• 3/4" deadlocking stainless steel Pullman latch bolt

• Rugged aluminum rail with anodized finish and high-impact ABS ends

• Angled end cap deflects impact to protect the device

• Compatible with standard and narrow stile trims


• Field sizeable, non-handed design

• Withstands 1,400+ lbs. of static pull force


Specifications:

• Single Doors: Minimum 3-1/2” stile with standard 99 surface strike

• Double Doors with Mullion: Minimum 4” stile


When strength, security, and simplicity matter, the V40 Series Rim Exit Device delivers—making it a trusted choice for demanding environments.
