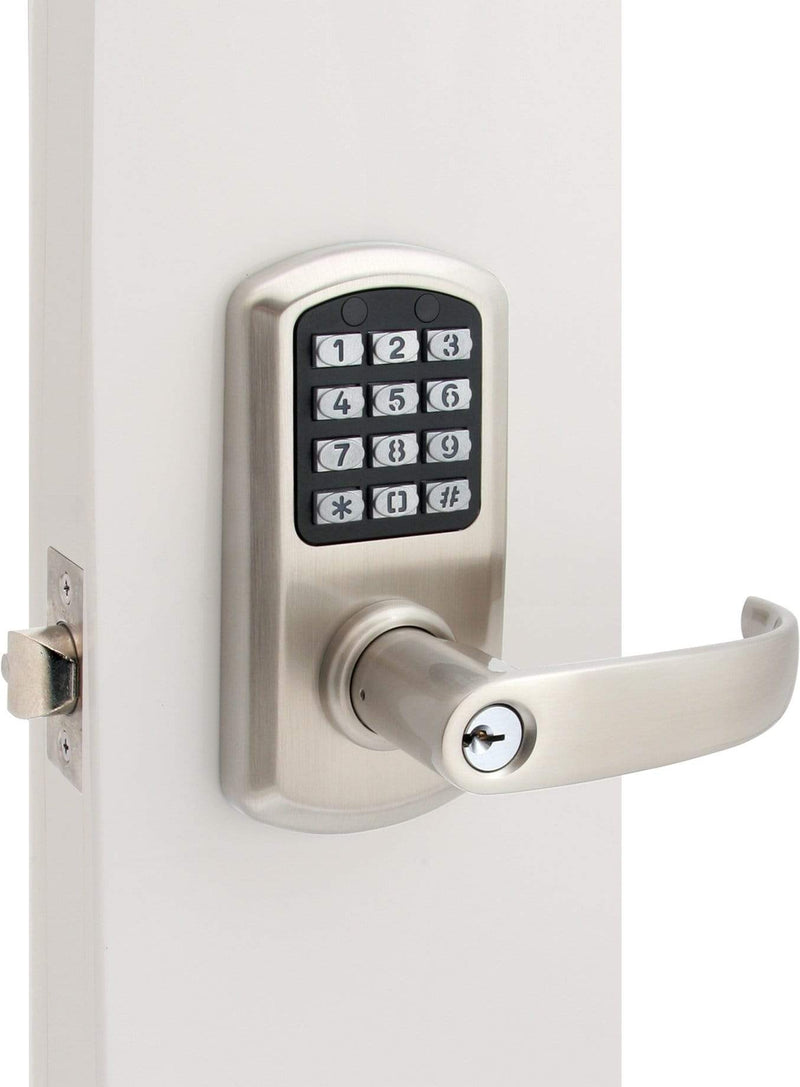

TownSteel E-Elite 2000 Series Grade 1 Push Button Electronic Lock -Satin Chrome
TownSteel E-Elite 2000 Series Grade 1 Push Button Electronic Lock -Satin Chrome
The TownSteel E-Elite Grade 1 Electronic Locks are truly one of a kind.
Why? Because they don't require ANY extra drilling in the door! Just a standard 2 1/8" Hole with through bolts like standard Commercial Doors will (should) have!
Programming Features
- 100 user ID and user codes
- Code Length: 4 to 6 digits
- Powered with 4 AA Alkaline batteries, up to 1 year battery life
- System Settings: Enable/Disable, Lock Status Indicator, Penalty Time, and more
Mechanical Specifications
- Door Thickness: 1-3/4”
- Backset: 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½”throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- SC4 Key, 6 pin Schlage C keyway
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for finish
- 9-year limited for mechanical
Downloads
- E-Elite Door Template
- E-Elite Lock Installation Guide
- E-Elite Programming Guide
- E-Elite - How to Change Lock Handing
Specifications
SKU#: TSL-E-ELITE-2020S-626
weight: 1.0 lb
