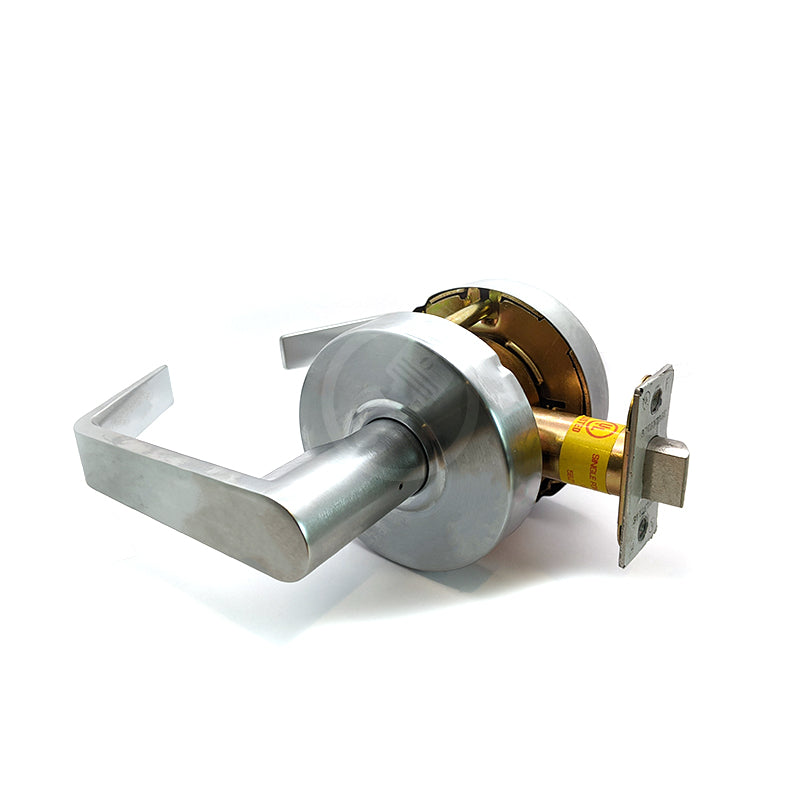

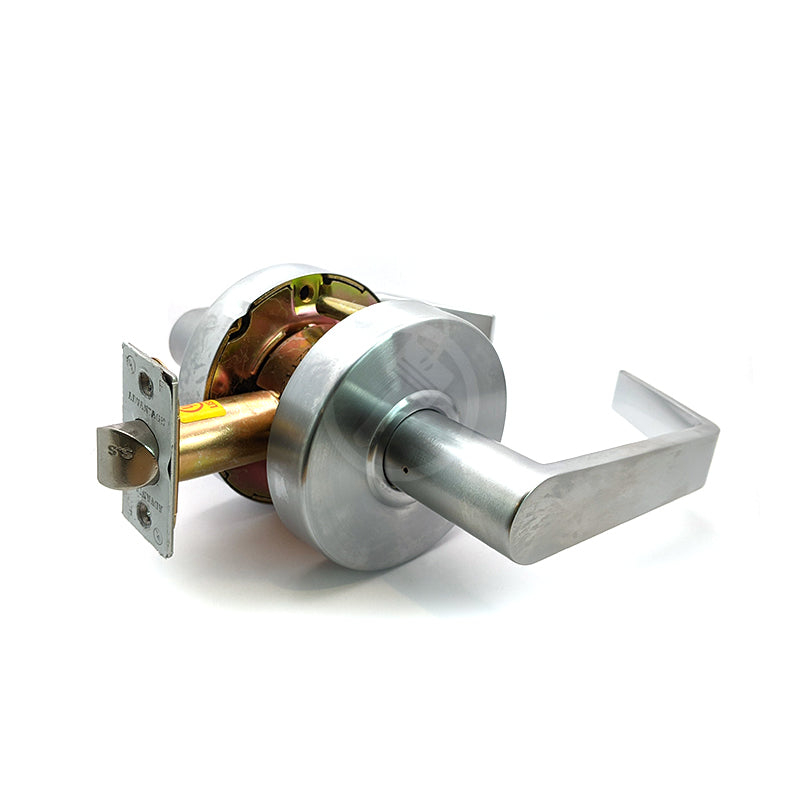

Advantage ES Series | Grade 2 Passage Lever | US26D
SKU PHG-501ES-CT-US26D
Original price
$ 98.25
-
Original price
$ 98.25
Original price
$ 98.25
$ 98.25
-
$ 98.25
Current price
$ 98.25
Availability:
In stock
Alt Part Number(s): EV501CT26D
Features:
- Independent torsion spring
- Fast and easy installation
- Clutch function standard
- Removable through bolt
- Panic proof (inside always free)
- Concealed mounting screws
- ADA compliant ANSI A117.a Barrier Free Accessibility
- 3 Hours Fire rating UL10C/UBC 7-2 )1997) Positive Pressure Rated
- ANSI Grade 2 ANSI/BHMA A156.2.-2003 Series 400, Grade 2 Exceeds 400,000 cycles
- California State Reference Code Formerly title 19
- Lifetime Mechanical Warranty
- BHMA Certified
- Clutch Function
- Latch- Mortise 2-3/4" Backset, 2-3/8" Sold Separate
Specifications:
- Door Fitting: 1-3/4" ~ 2" door standard. Factory preset at 1-3/4". Thru-bolt CTC: 2-3/4" Can be used on a 1-3/8" with PHG-500ES-SPES-US32D Shim set.
- Exposed Trim: Wrought brass. Pressure cast zinc lever
- Lock Chassis: Heavy gauge dichromated stee, featuring a solid zinc rosette on both the int. and ext. for added security
- Latch: 1/2" throw stainless steel latch bolt. Square corner faceplate standard, UL listed, floating latch design fits both flat or beveled doors 1/8" in 2"
- 2-3/4" backset: 1-1/8" X 2-1/4" faceplate.
- 2-3/8" backset: 1" X 2-1/4" faceplate

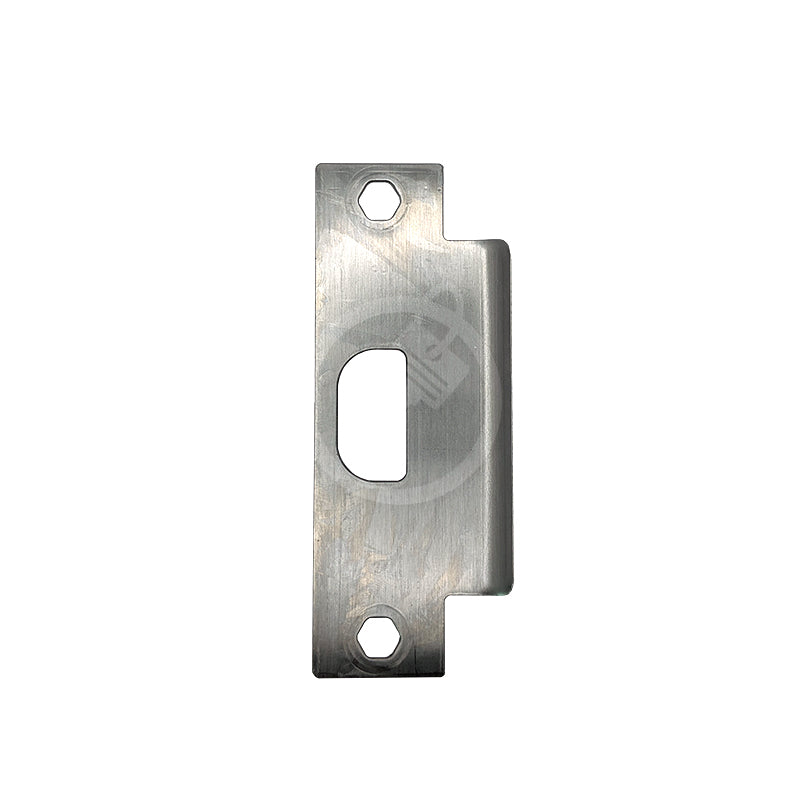

- Strike: ASA Strike standard (9109)
- Handing: Universal, non-handing
- Screws: Combination screws for both metal and wood doors
Availability-7 days
Specifications
SKU#: PHG-501ES-CT-US26D
weight: 4.33 lb
Download(s): Click to view PHG_Spec_Sheet_-_Advantage_Commercial_Lock_-_ES_Series.pdf
Vendor: PHG
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin: Taiwan
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Passage
