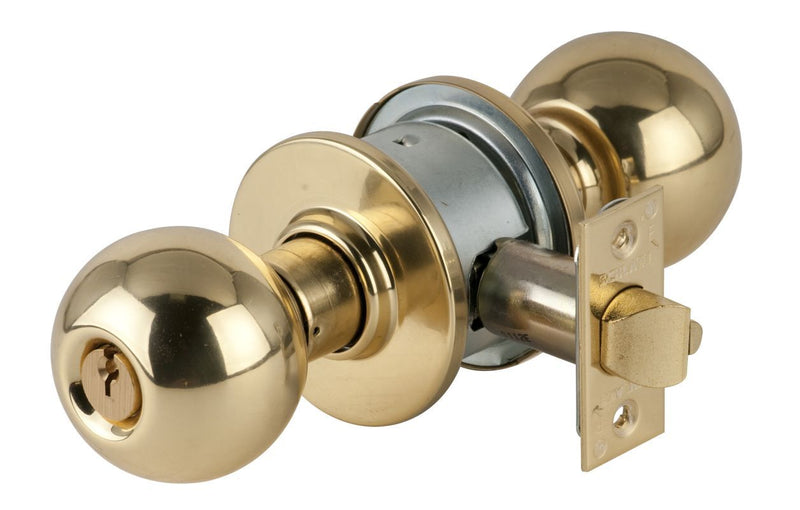

Advantage EA Series | Grade 2 Entrance Knob | US3

Advantage EA Series | Grade 2 Entrance Knob | US3

Features

• SC4 6-pin Standard
• Concealed Mounting Screws
• 1 Piece Bulging High Security Knob
• Fast and Easy Installation
• Panic Proof (inside always free)
• ANSI GRADE 2
• ANSI/BHMA A156.2-2003
• Series 4000, Grade 2
• Exceeds 400,000 cycles
• 3 hours Fire rating
• UL10C/UBC 7-2(1997)
• Positive Pressure Rated

Specifications

• Door Fitting 1-3/8” ~ 1-3/4” door thick. 2” door thick optional.
• Exposed Trim Wrought brass or stainless steel.
• Lock Chassis Heavy gauge dichromated steel.
• Cylinder Solid brass SC4 6-pin standard.
• Latch 1/2” throw stainless steel latch bolt.
• 2-3/4” backset-1-1/8” x 2-1/4” faceplate mortise latch
• Drive-in latch available.
• Strike T-Strike standard (9106).
• Screws Combination screws for both metal and wood doors.
• Keys 2 brass keys per set.

Availability-7 days

FAQs

1) What are Gatehouse key blanks used for?
Gatehouse key blanks are uncut, pre-profiled keys designed to work with Gatehouse lock cylinders, commonly found on residential doors. Locksmiths use these blanks to create precise duplicates or replacement keys by cutting them to match a specific lock bitting.

2) Is the EA Series entrance knob easy to install on existing doors?
Yes, the Advantage EA Series knob is designed for easy installation, fitting standard 2-3/8″ or 2-3/4″ backset door preparations. It comes with all necessary mounting hardware and follows ANSI/BHMA Grade 2 standards, so you can install it yourself with a screwdriver in less than 10 minutes.
