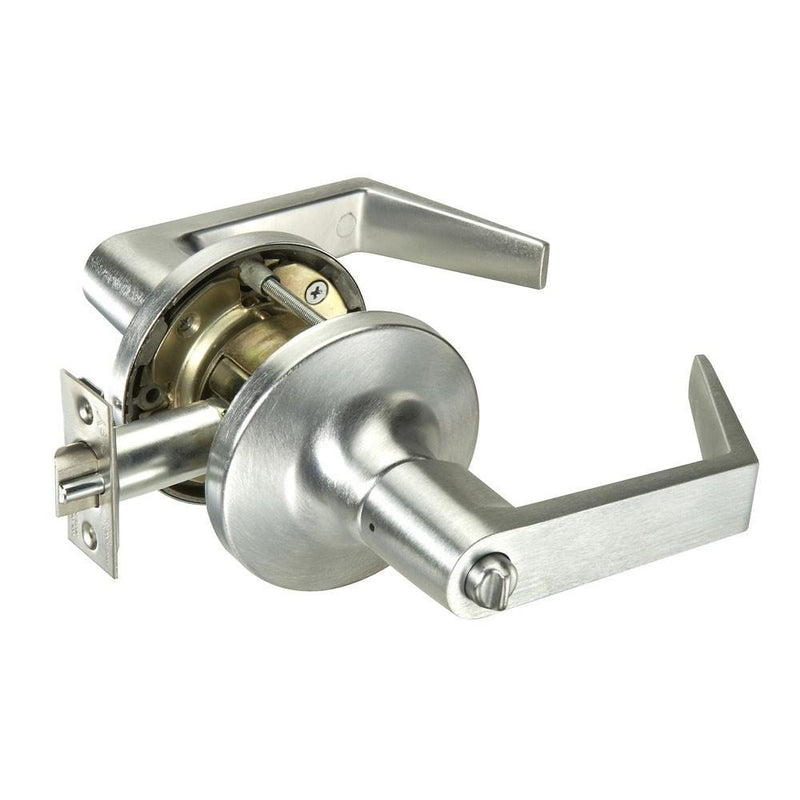

Advantage FC Series | Grade 1 Entrance Lever | US26D
SKU PHG-500FC-CT-US26D
Original price
$ 118.74
-
Original price
$ 118.74
Original price
$ 118.74
$ 118.74
-
$ 118.74
Current price
$ 118.74
Availability:
In stock
Features:
- ANSI Grade 1
- ADA compliant ANSI A117.1 Barrier Free Accessibility
- UL 3 hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated
- CALIFORNIA STATE REFERENCE CODE
Formerly Title 19, California State Fire Marshal (CSFM) levers return to within 1/2β of door face - Independent torsion springs
- Fast and easy installation
- Clutch function standard
- Removable through bolt
- Panic proof (inside always free)Β
- Concealed Mounting Screws
- Lifetime Mechanical WarrantyΒ
Specifications:
- Door Fitting: 1-3/8β ~ 2β door thick. Factory preset at 1-3/4β. Thru-Bolt CTC: 2-3/4β.
- Exposed Trim: Wrought brass. Pressure cast zinc lever.
- Lock Chassis: Heavy gauge dichromated steel. Zinc dichromated for corrosion resistance.
- Cylinder: SC4 6-pin standard (can change cylinder to any K001)
- Latch: 2 3/4" Backset: 1/2β throw, 7/8β dia. stainless steel latch bolt. 1-1/8β x 2-1/4β faceplate. Floating latch design fits both flat or beveled doors 1/8β in 2β.
- Strike: ASA strike standard
- Handing" Universal, non-handing.
- Screws: Combination screws for both metal and wood doors.
Specifications
SKU#: PHG-500FC-CT-US26D
weight: 5.33 lb
Download(s):
Vendor: PHG
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Entrance
