Marks USA Heavy Duty Narrow Stile Rim Exit Device | M8800 | US32D

SKU MAR-M8800-32D
Original price $ 282.48 - Original price $ 282.48
Original price
$ 282.48
$ 282.48 - $ 282.48
Current price $ 282.48
Availability:
In stock

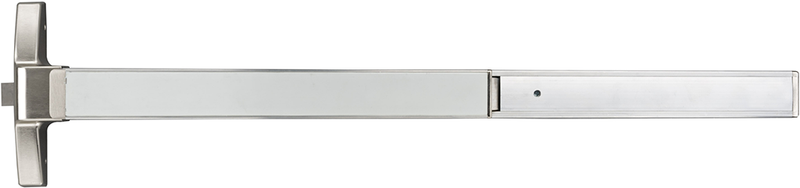

The Marks USA M8800 Narrow Stile Rim Exit Device is engineered for use in aluminum storefront doors and other narrow stile door applications. Built to meet Grade 1 standards, this exit device offers superior durability and performance for high-traffic commercial environments, such as retail spaces, office buildings, schools, and more. The M8800 features a satin stainless steel (US32D) finish, which ensures long-lasting corrosion resistance and a sleek, modern appearance.


Comparable to the Von Duprin 33A Series

The Marks USA M8800 serves as an excellent alternative to the Von Duprin 33A Series exit devices. Both are designed for narrow stile applications and meet ANSI/BHMA A156.3 Grade 1 standards for maximum strength and security. The M8800 offers a cost-effective solution while maintaining the high level of performance required for commercial and institutional settings. Its robust construction makes it an ideal replacement for the Von Duprin 33A, ensuring easy installation on existing door preps.

Unmatched Durability for High-Traffic Areas

The Marks M8800 features a heavy-duty cast chassis and a flush-mounted Panic Protector™ end cap, which prevents damage from carts and other impacts. It is designed to provide smooth and reliable egress during emergencies, ensuring safety compliance with fire and panic listings. Additionally, the field-reversible design allows for versatile installation on either left- or right-hand doors, making it adaptable to any space.

Key Features:

Grade 1 certified for heavy-duty commercial use

Ideal replacement for the Von Duprin 33A Series narrow stile exit device

US32D Satin Stainless Steel finish for corrosion resistance and modern aesthetics

Designed for narrow stile aluminum doors, making it perfect for storefronts

Field reversible design for left- or right-hand door applications

Meets ANSI/BHMA A156.3 standards and is UL listed for fire-rated doors

Heavy-duty Panic Protector™ end cap to prevent damage from impacts

The Marks USA M8800 Narrow Stile Exit Device is a top choice for high-security, high-traffic environments, offering a reliable and cost-effective solution when upgrading from the Von Duprin 33A Series. Ensure your commercial property is protected with this premium exit device that combines safety, durability, and ease of use.

Specifications

SKU#: MAR-M8800-32D

weight: 17.64 lb

Download(s): Click to view Marks_M8800_Exit_Device.pdf

Vendor: Marks USA

Material:

Alternative Key:

Alternative Part Number(s):

Country of Origin:

Condition: New

Key Type:

Pin Diameter:

Pins Per Pack:

Pin Length:

Function:

Programing Instructions :

Code Series :

Buttons:

Emergency Key Included :

Chip :

Reusable :

Battery:

Test Key:

Chipless Key :

Dimensions : Touch bar height from finished floor: 41" (1041mm) from center of touch bar
Touch Bar Projection: Neutral: 3-5/16" (84mm)
Depressed: 2-19/32" (66mm)
Head Cover: LxWxH: 206mm x 76mm x 71mm
Device Length: 34-5/87"(88cm) for 36" door width 46-5/8"

Special Marking (s) :

Replacement Brush:

Replacement Cutters(s) :

Power Supply :

Warranty : Lifetime Mechanical Warranty

Feature(s) :

Keyway:
