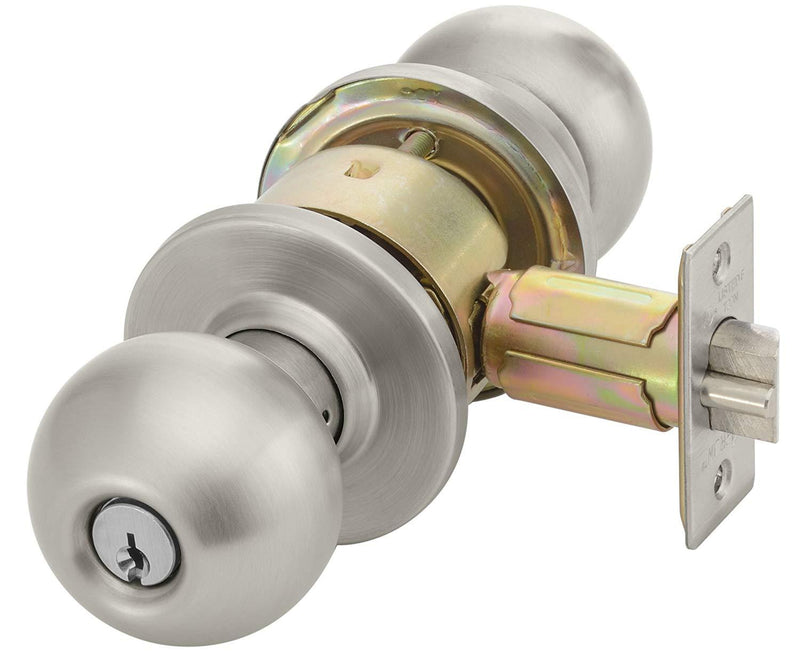

Advantage EA Series | Grade 2 Entrance Knob | US32D
This lock comes with a 2 3/4" Latch, if you need a 2 3/8" Latch you can order it here
Features
- SC4 6-pin Standard
- Concealed Mounting Screws
- 1 Piece Bulging High Security Knob
- Fast and Easy Installation
- Panic Proof (inside always free)
- ANSI GRADE 2
- ANSI/BHMA A156.2-2003
- Series 4000, Grade 2
- Exceeds 400,000 cycles
- 3 hours Fire rating
- UL10C/UBC 7-2(1997)
- Positive Pressure Rated
Specifications
- Door Fitting 1-3/8” ~ 1-3/4” door thick. 2” door thick optional.
- Exposed Trim Wrought brass or stainless steel.
- Lock Chassis Heavy gauge dichromated steel.
- Cylinder Solid brass SC4 6-pin standard.
- Latch 1/2” throw stainless steel latch bolt.
- 2-3/4” backset-1-1/8” x 2-1/4” faceplate mortise latch or 2-3/8” backset-1” x 2-1/4” faceplate mortise latch.
- Drive-in latch available.
- Strike T-Strike standard (9106).
- Screws Combination screws for both metal and wood doors.
- Keys 2 brass keys per set.
Availability-7 days
Specifications
SKU#: PHG-100EA-BA-US32D
weight: 4.0 lb
