How to Straighten a Bent Hinge Reinforcement Plate Without Removing the Door

For locksmiths who service commercial hollow metal doors, a bent hinge reinforcement plate is one of the most common — and most misdiagnosed — service calls. A door that won't latch often gets blamed on the lock or strike plate, when the real issue is a bent hinge plate inside the frame. The good news for locksmiths: this repair doesn't require removing the door. In this guide, we'll break down what causes this issue, how locksmiths can diagnose it in the field, and exactly how to fix it using the Framon Hinge Reinforcement Straightener (HRS-1).

What Is a Hinge Reinforcement Plate

A hinge reinforcement plate is a steel plate mounted inside a hollow metal door frame at each hinge point. It reinforces the thin metal skin of the frame so hinge screws have something solid to anchor into. For locksmiths, this plate matters because it's structural — when it bends, the entire door's alignment shifts, which throws off the latch and strike relationship even if the lock hardware itself is perfectly functional.

This is a critical distinction for locksmiths on a service call: swapping a strike plate or adjusting a lock won't fix a door that isn't closing correctly if the underlying hinge plate is bent.

Why This Matters for Locksmiths Specifically

Locksmiths are often the first call when a commercial door "won't lock." Recognizing a bent hinge reinforcement plate — instead of assuming a hardware failure — is a skill that separates a locksmith who can fully resolve the job from one who has to refer it out to a door company. Being able to diagnose and repair this on the spot means:

• Fewer callbacks

• No need to subcontract to a door/frame specialist

• A completed job in one visit instead of two

• An added billable repair service locksmiths can offer clients

What Causes a Hinge Reinforcement Plate to Bend?

Locksmiths troubleshooting a door that won't latch should consider these common causes:

• Wind damage — a door caught by a gust and forced open past its normal range

• Forceful or careless use — doors swung open too hard in high-traffic commercial buildings

• Impact — carts, equipment, or furniture striking an open door

• Repeated stress over time — gradual deformation from hundreds of open/close cycles

Any of these can bend the plate just enough to misalign the door, even when the hinges themselves and the lock hardware look completely normal.

How Locksmiths Can Diagnose a Bent Hinge Plate on Site

Before jumping to a lock or strike plate repair, locksmiths should check for these signs:

• The door won't latch, or only latches with extra force

• The door sags or hangs unevenly in the frame

• There's a visible gap between the door and frame near a hinge

• The door drags or rubs against the frame at one specific point

• Hinges appear straight and undamaged, but the door still won't sit correctly

If the lock and hinges both check out fine but the door still misbehaves, the hinge reinforcement plate is the likely culprit. This is a detail locksmiths can easily use to distinguish a lock issue from a structural door issue — and it changes what tool comes out of the van.

Why Locksmiths Don't Need to Remove the Door for This Repair

Traditionally, a bent hinge plate meant pulling the door, sending it to a shop, or bringing in a door specialist — all of which take the door out of service and cost the locksmith valuable time on-site. With a purpose-built tool, that's no longer necessary.

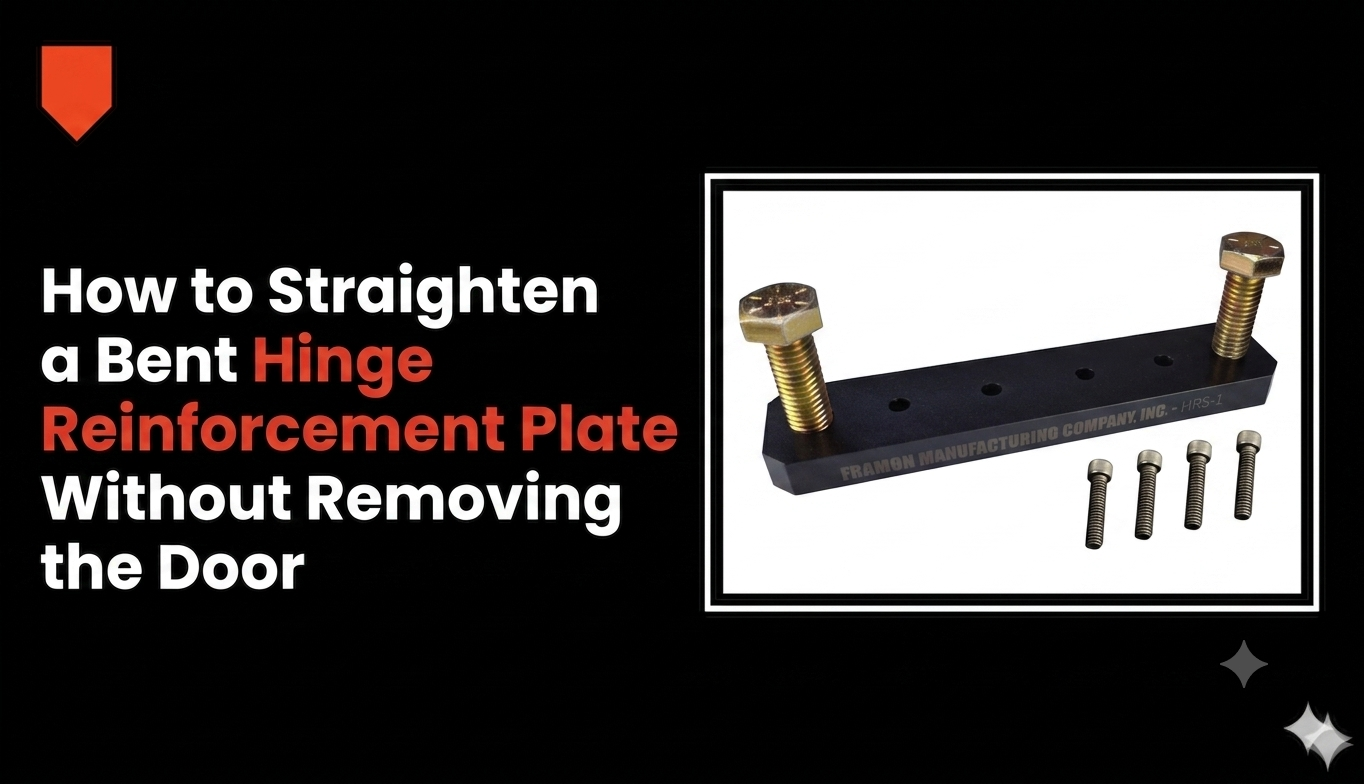

The Framon HRS-1 Hinge Reinforcement Straightener is designed specifically for locksmiths and door technicians to correct bent hinge plates in place — without removing the door from its frame. That means locksmiths can complete the repair during the original service call, rather than scheduling a return visit or turning the job over to someone else.

Step-by-Step: How Locksmiths Can Straighten a Hinge Reinforcement Plate

Here's the general repair process using a dedicated tool like the HRS-1. (Always follow the manufacturer's official instructions — Framon provides a full instruction sheet covering exact positioning for the HRS-1.)

1. Diagnose the Bend

Slowly open and close the door to observe exactly where it binds, gaps, or drags. This tells the locksmith which hinge — and which direction — the plate has bent.

2. Position the Tool at the Hinge

The HRS-1 is compact (about 6.5" wide, 1.375" deep, 0.5" tall), which lets locksmiths work it into the tight clearances typical of hinge-side door frames without extra disassembly.

3. Attach Using the Included Fasteners

The HRS-1 ships with the fasteners required for the job. The only additional item a locksmith needs is a ¾-inch socket — no specialty tool investment beyond what's already commonly carried.

4. Apply Even, Controlled Pressure

Rather than prying the plate with a crowbar or similar leverage (which risks overcorrecting or cracking a weld), the HRS-1 applies even pressure that gradually returns the plate to its original position — a safer approach for locksmiths who don't want to create a second problem while fixing the first.

5. Test the Door

Once pressure is released, the locksmith checks the latch engagement, strike alignment, and overall door swing. Minor repositioning may be needed for more severe bends.

6. Confirm Full Range of Motion

Cycle the door open and closed several times to confirm the latch engages consistently — not just on the first try — before closing out the job.

Why Locksmiths Should Use a Dedicated Tool Instead of Improvising

It's tempting for a locksmith in a hurry to try bending a plate back with a pry bar or adjustable wrench. The risk is precision: hinge reinforcement plates are structural, and uneven force can crack welds, warp the frame further, or introduce a new misalignment. A dedicated tool like the HRS-1 is engineered to direct pressure exactly where it's needed — which is why it's increasingly treated as standard equipment for locksmiths who regularly service commercial hollow metal doors.

Build Quality Locksmiths Can Rely On

The HRS-1 is constructed from black oxidized steel with steel bolts, built to hold up to repeated field use — an important consideration for locksmiths who need tools that survive being carried from job to job in a service vehicle. Its compact size means it stores easily alongside other commercial doors and hardware tools without taking up significant space in a locksmith's kit.

Repair vs. Replacement: Why This Matters

Replacing a hollow metal door and frame due to a bent hinge plate is often unnecessary and costly. In most cases, the door itself is structurally sound — only the reinforcement plate has shifted out of alignment. Straightening the plate restores proper function without the expense, downtime, or waste of a full replacement. This is one of the main reasons tools like the Framon Hinge Reinforcement Straightener have become a practical addition to a locksmith’s toolkit rather than a niche specialty item.

Final Thoughts

For locksmiths who handle commercial door service calls, a bent hinge reinforcement plate is a common issue that's easy to misdiagnose and, with the right tool, easy to fix in a single visit. Adding this repair to a locksmith's toolkit means fewer callbacks, no need to bring in outside door specialists, and a faster resolution for the client. Locksmiths looking to add this capability can find the Framon Hinge Reinforcement Straightener (HRS-1) at CLK Supplies.
